Overview

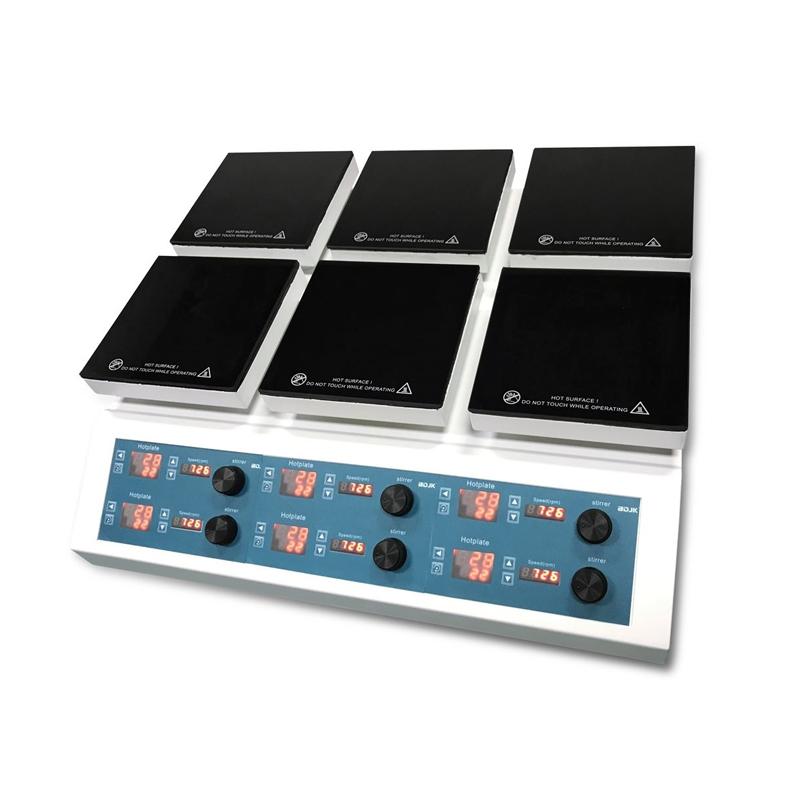

The BDJK HMS-901D6 multi-heating Magnetic Stirrer is powered by NanoHeat world-class thermal energy technology, with super infrared heat radiation and no mechanical heating components. It can dry burn without electromagnetic field interference. The device supports ultra-fast heating, the temperature increases at a rate of 5 ° C per second, the surface temperature is uniform, the liquid temperature difference is accurate to 0.1~ 0.5 ° C, and it only takes 8 minutes to heat up to 450 ° C. LED display, temperature setting, switching of built-in and external temperature sensors, over-temperature alarm and Timing function make it easy to operate. German SCHOTT seamless microcrystalline ceramic plate surface acid, alkali and corrosion, easy to clean, stable mixing performance, DC motor, low noise, long life, suitable for a variety of containers and a wide range of fields.
Features
1. Enhanced infrared heating technology, heating output power 600W, Surface Temperature range room temperature to 450 ℃.
2. Temperature control mode is freely set for LED digital display temperature, temperature test supports built-in and external temperature control switching, control accuracy +/- 0.1~ 0.5 ℃.
3. Stirrer adopts ND servo motor, output power 7W, Speed range 0~ 2500rpm, stepless speed regulation and digital display.
4. Max. stirring Capacity 3L, working size 150 × 150mm, the board material is German Schott seamless microcrystalline ceramics, acid, alkali, corrosion and easy to clean.
5. Super fast heating ability, Temperature uniformity, support dry burning, no electromagnetic field interference and harm.
6. Multi-station design (6 stations), the maximum total stirring capacity is 18L, suitable for plastic, Glass, ceramic and metal containers.
Principle
Based on NanoHeat thermal energy technology, the device achieves heating through super-intense infrared thermal radiation. There are no mechanical heating components, ensuring no electromagnetic field interference. The heating process is fast and uniform, and the temperature control is precisely adjusted by switching between built-in or external temperature sensors. The stirring function is driven by a DC motor, providing stable, low-noise swirl/spin force. It supports stepless speed regulation to ensure uniform mixing of experimental samples.
Applications
Industry, agriculture, aerospace laboratories, chemistry, biology, scientific research, universities and other experimental heating and stirring
Steps
Connect the power supply, ensure that the voltage is 220V/110V, Frequency 50/60Hz.
2. Turn on the device, set the desired temperature through the LED display, and choose the built-in or external temperature sensor mode.
3. Set the stirring speed and use the stepless speed regulation function to adjust the Rotation speed to the range of 0~ 2500rpm.
4. Place the container (such as plastic, Glass, ceramic or metal) on the work plate, add the sample and start heating and stirring.
5. Monitor temperature and time, and use over-temperature alarm and Timing function to ensure experimental safety.
6. After the experiment, turn off the equipment and clean the surface of the microcrystalline ceramic plate.
Notice
• Power supply voltage check before use 220V/110V requirements.
• Ensure that the Ambient Temperature is within the range of 5~ 40 ° C and the relative humidity is below 90%.
• Avoid overloading, Max. stirring Capacity does not exceed 3L per station, total Max. stirring Capacity 18L.
• Pay attention to the temperature setting when heating, prevent overheating, and use the alarm function.
• Use appropriate methods when cleaning to maintain the corrosion resistance of the microcrystalline ceramic plate surface.
• The size of the stirrer does not exceed 30mm to ensure compatibility.
• Device weight 17kg, be careful to avoid damage when handling.
