Overview

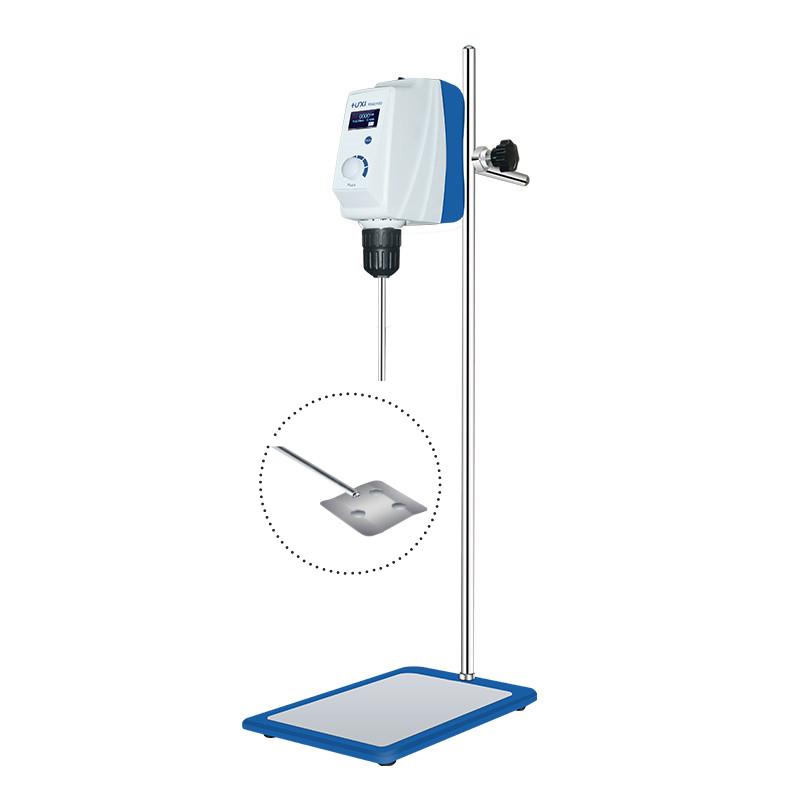

HUXI LCD top-mounted Stirrer (model RWD50/20030003/20030012) is a high-end laboratory equipment suitable for mixing medium and high viscosity liquids, which is safer and more reliable than LED series. The product adopts self-locking chuck and self-developed Cube lifting fixing clip, which can be competent for high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. Mainly used for mixing of solid-liquid, liquid-liquid or medium and high viscosity samples.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to achieve mixing of medium and high viscosity liquids. The Impeller is fixed with a self-locking chuck, and the Rotation speed and Working time are precisely controlled through the LCD display. The torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it
2. Insert the stirring rod into the penetration hole and fix it.
3. Rotation speed and Working time set by LCD screen
4. Stirrer starts working
5. Parameters can be fine-tuned as needed during the working process
6. Turn off the power after stirring
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function to avoid overload use
• Regularly check the chuck protective cover and non-slip pad
• Select the appropriate Impeller type based on sample viscosity
• Stop using it immediately when there is a fault display
