Overview

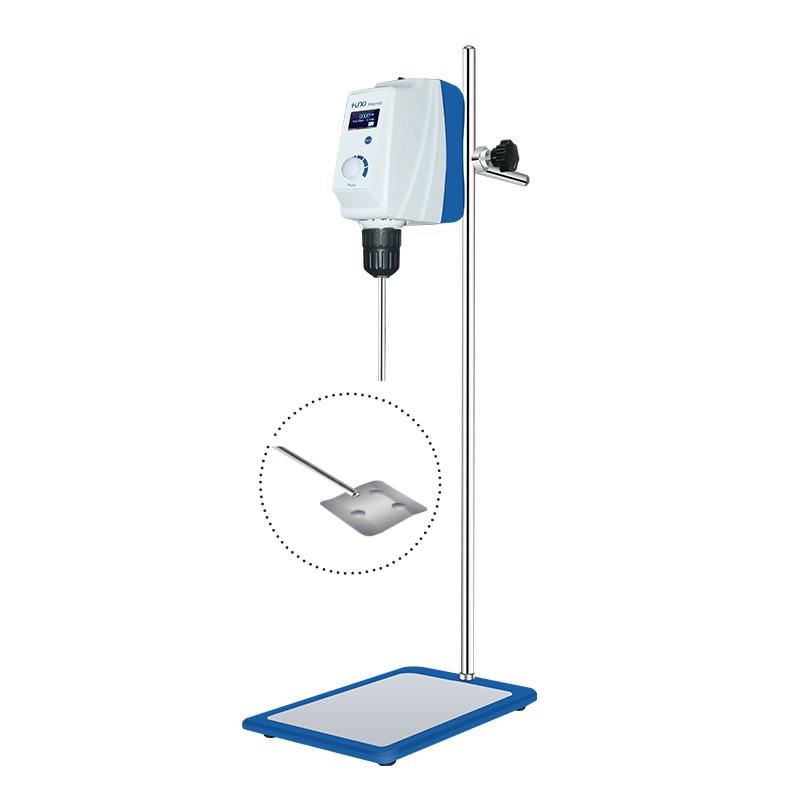

HUXI LCD Top Stirrer (model RWD50/20030044/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product features an LCD display with Rotation speed and time adjustment functions, which is capable of high load, long-term continuous work, and has automatic overload and abnormal protection functions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. The Impeller is fixed with a self-locking chuck, and the Rotation speed is controlled by stepless speed regulation. The torque can be automatically adjusted according to the sample viscosity.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and time parameters
4. Stirrer to work
5. Time can be fine-tuned during the work process
Notice
• Operating Environment Temperature should be within 5~ 40 ℃
• relative humidity should not exceed 80%
• Power supply voltage should be 100-240VAC
• Rated Frequency 50/60Hz
• Pay attention to the overload protection function, it will automatically stop if there is a failure
• Check the chuck protective cover and non-slip pad before use
• Select the appropriate Impeller based on sample viscosity
