Overview

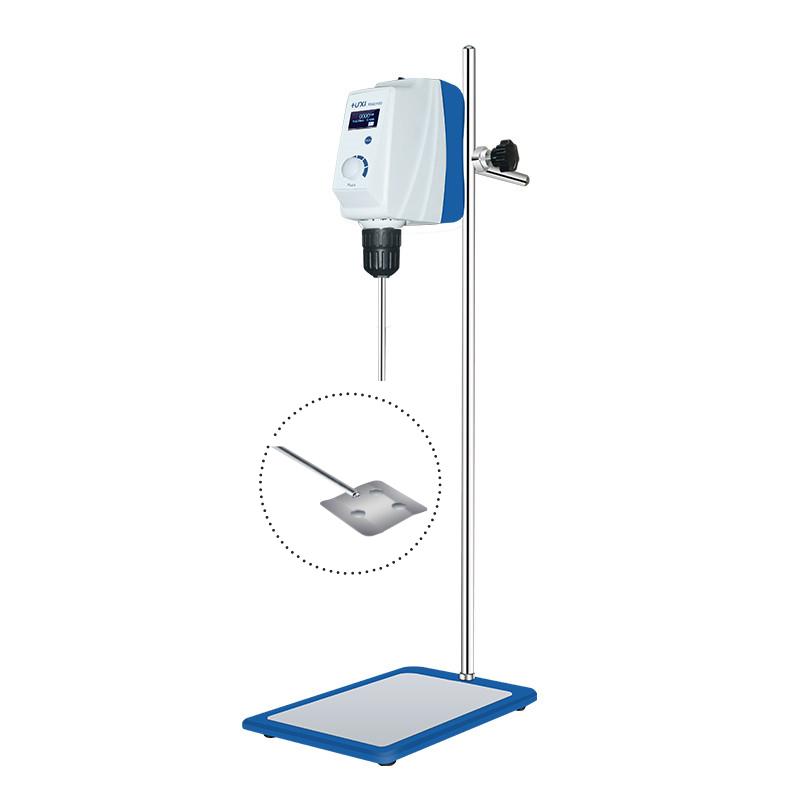

LCD Stirrer is a high-end laboratory mixing equipment of HUXI brand, suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to achieve mixing of medium and high viscosity liquids. The torque can be automatically adjusted according to the viscosity change of the sample to ensure stable operation. The Impeller is fixed with a self-locking chuck, and the Rotation speed and Working time are precisely controlled through the LCD screen.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time
4. Start the equipment and start stirring
5. Time can be fine-tuned during the work process
6. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function, and deal with the fault display in time
• Use non-slip mats to ensure equipment stability
• Regularly check the integrity of the chuck protective cover
• Select the appropriate Impeller type based on sample viscosity
