Overview

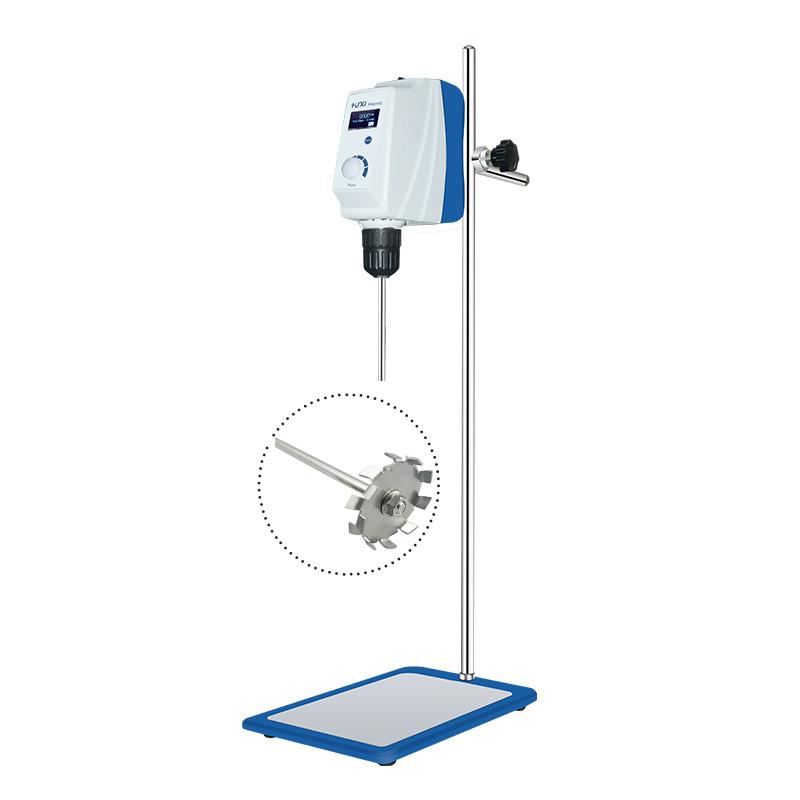

HUXI LCD Top Stirrer (model RWD50/20030051/20030012) is a powerful basic stirrer for mixing medium and high viscosity liquids, using self-locking chucks and self-developed Cube lifting clamps. The product is capable of high load, long-term continuous work, outstanding performance, automatic protection of overloads and abnormal situations, ensuring laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. The Impeller is fixed with a self-locking chuck, and the torque can be automatically adjusted according to the viscosity, ensuring efficient mixing.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the Right Impeller and Install
2. Adjust the installation position of the stirring rod
3. Rotation speed and time parameters
4. Start Stirrer to mix
5. Monitor operating status and fine-tune parameters if necessary
Notice
• Only for Permissible Ambient Temperature 5~ 40 ℃ and relative humidity below 80%
• Avoid overload operation to prevent automatic protection triggering
• Check that the chuck protective cover and non-slip pad are in good condition before use
• Select the appropriate Impeller type based on sample viscosity
• Power supply voltage in 100-240VAC range
