Overview

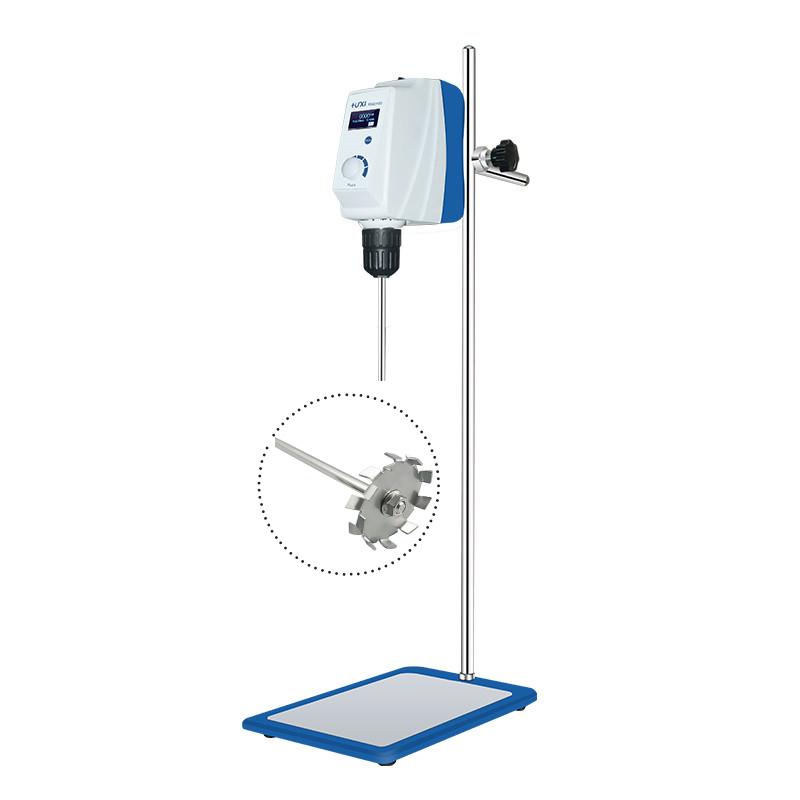

HUXI LCD overhead Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. The model is RWD50/20030052/20030012. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can be capable of high load and long time continuous work. It has automatic protection function of overload and abnormal situation to ensure laboratory safety. Mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity of the sample to ensure stable operation under different viscosity conditions. In the event of overload, short circuit or abnormal situation, the system will automatically cut off the circuit and alarm to ensure the safety of the experiment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Rotation speed and Working time set by LCD screen
3. Select coarse or fine-tuning mode as required
4. Start the equipment and start stirring
5. Monitor the operating status and adjust parameters if necessary
6. Turn off the device after completing the work
Notice
• Power supply voltage within 100-240VAC range before use
• Ensure that the Ambient Temperature is between 5-40 ° C and the relative humidity does not exceed 80%
• Impeller installation, pay attention to the use of self-locking chuck fixed firmly
• Stop using immediately when there is an overload or fault alarm
• Regularly check whether the equipment protection function is normal
• Do not use under conditions exceeding the maximum viscosity of 10000mPa · s
