Overview

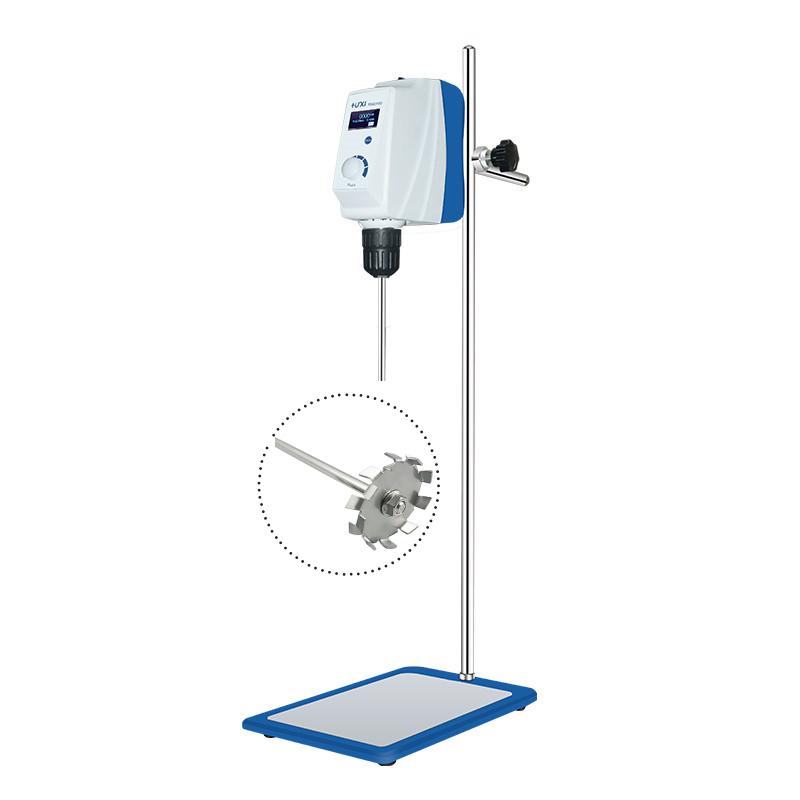

HUXI LCD top-mounted Stirrer (model RWD50/20030053/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display screen and self-locking chuck design, with automatic protection function for overload and abnormal conditions, capable of high load and long-term continuous work, mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to realize mixing and stirring of medium and high viscosity liquids. The equipment adopts a stepless speed regulation method, and the torque can be automatically adjusted according to the viscosity change of the sample, ensuring stable operation under different viscosity conditions.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Rotation speed and Working time set by LCD screen
3. Working time can be fine-tuned as required
4. Start the equipment and start the mixing operation
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ℃
• The relative humidity should not exceed 80%
• The clamping diameter range is limited to 0.5~ 10mm
• The device will automatically stop and alarm when there is an overload or abnormality
• Do not use under conditions exceeding the maximum viscosity of 10000mPa · s
• Please pay attention to safety measures when using
