Overview

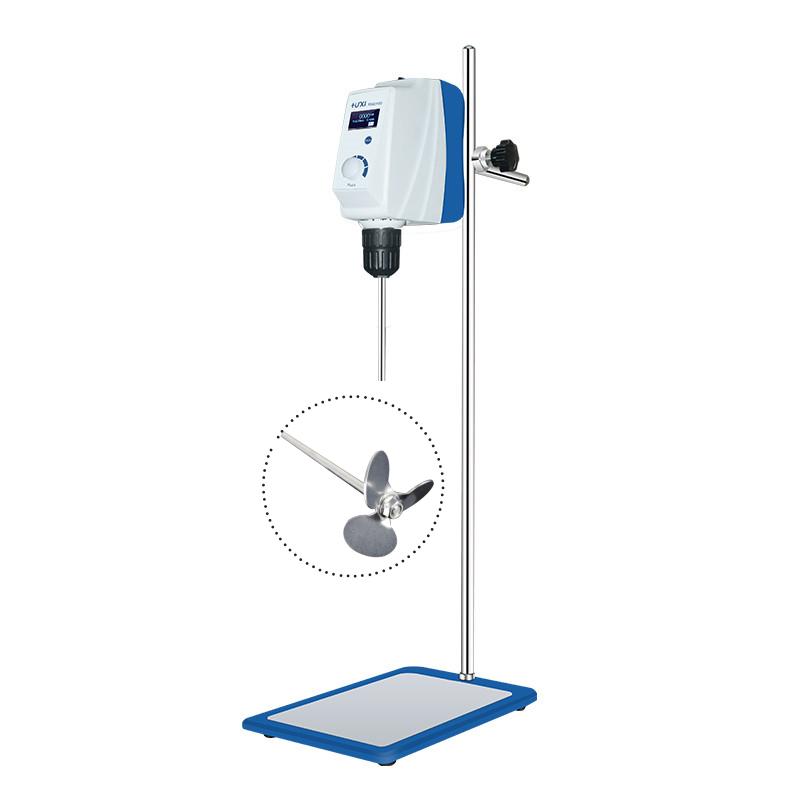

HUXI LCD top-mounted Stirrer (model RWD50/20030086/20030012) is a high-end laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting and fixing clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. It is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. DC brushless motor, long-term safe operation, outstanding performance
4. Overload and motor protection, automatically cut off the circuit and alarm in the event of overload, short circuit or abnormality
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument, just adjust the installation position of the stirring rod
6. The torque can be automatically adjusted according to the change of sample viscosity, which is convenient for experimental operation
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity of the sample to ensure stable operation under different viscosity conditions. In the event of overload, short circuit or abnormal situation, the system will automatically cut off the circuit and alarm to ensure the safety of the experiment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the right Impeller according to the experimental needs
2. Impeller secured by self-locking chuck
3. Rotation speed and time parameters set by LCD screen
4. Stirrer starts working
5. Working time can be fine-tuned as needed during the working process
6. Turn off the device after the experiment is completed
Notice
• Before use, please check whether the Power supply voltage meets the requirements of 100-240VAC
• Ambient Temperature should be kept within 5-40 ℃
• The relative humidity should not exceed 80%
• Note that the clamping diameter range of the Impeller should be between 0.5-10 mm
• The device will automatically stop when there is a fault display, please check and deal with it in time.
• Please ensure that the chuck protective cover and non-slip pad are in good condition when using
• Do not exceed the maximum viscosity limit of the device of 10000mPa · s
• Regularly check the operating status of the equipment to ensure the normal safety protection function
