Overview

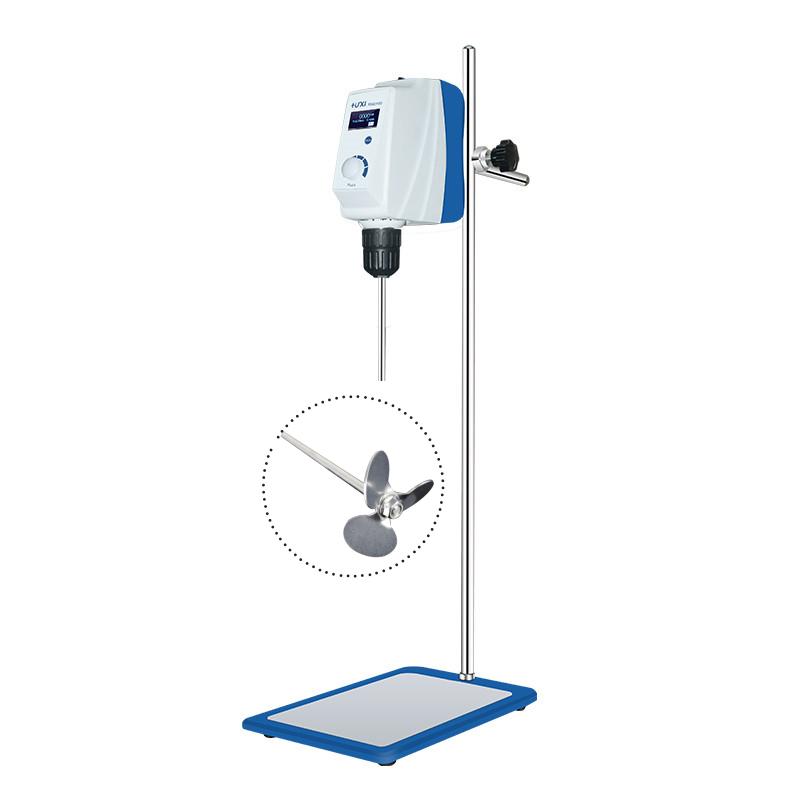

HUXI LCD top-mounted Stirrer (model RWD50/20030088/20030012) is a high-end laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting and fixing clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller Type
2. Install Impeller into Self-locking Chuck
3. Adjust the installation position of the stirring rod
4. Rotation speed and Working time
5. Start Stirrer for mixing operations
6. Turn off the power after the work is completed
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be kept between 5 and 40 ℃
• The relative humidity should not exceed 80%
• Pay attention to the use of chuck protective cover and non-slip pad
• When there is an overload or abnormality, the device will automatically stop and display a fault
• Do not use under conditions exceeding the maximum viscosity of 10000mPa · s
• Impeller clamping diameter range is 0.5~ 10mm
