Overview

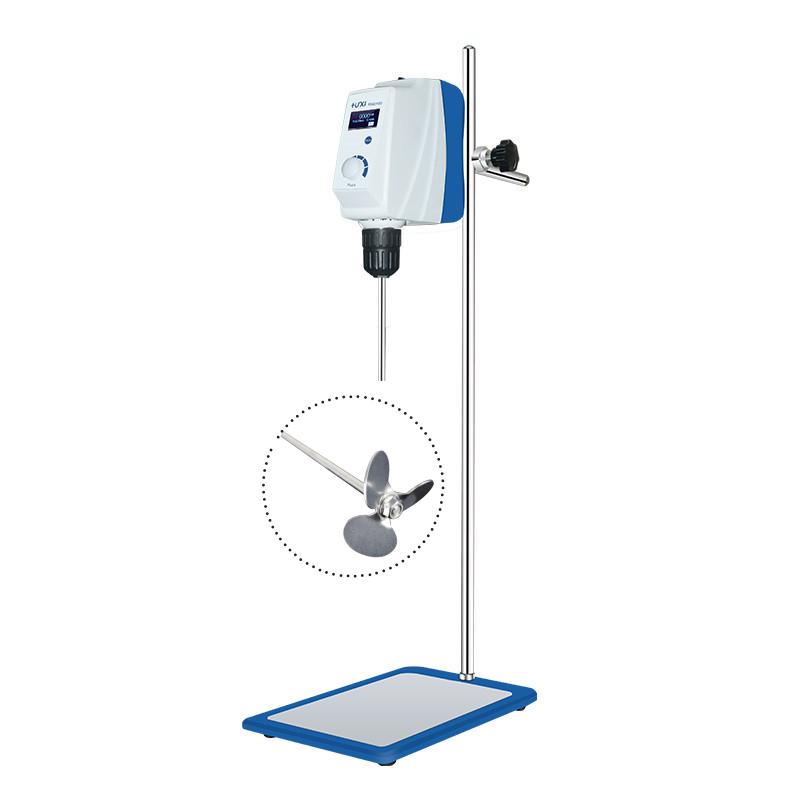

LCD Stirrer is a high-end laboratory mixing equipment of HUXI brand, suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to generate tangential, axial or radial flow, creating turbulence and shear force for mixing solid-liquid, liquid-liquid or medium to high viscosity samples. The torque can be automatically adjusted according to the sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller
2. Install Impeller to Self-locking Chuck
3. Rotation speed and Working time set by LCD screen
4. Start Stirrer for mixing operations
5. Turn off the power after the work is completed
Notice
• Before use, please check whether the Power supply voltage meets the requirements
• Do not use within the Permissible Ambient Temperature range of 5~ 40 ° C
• The relative humidity should not exceed 80%
• Impeller should be firmly installed
• The device will automatically stop and alarm when there is an overload or abnormality
• Do not disassemble the internal structure of the device without authorization
• Clean Impeller in time after use
