Overview

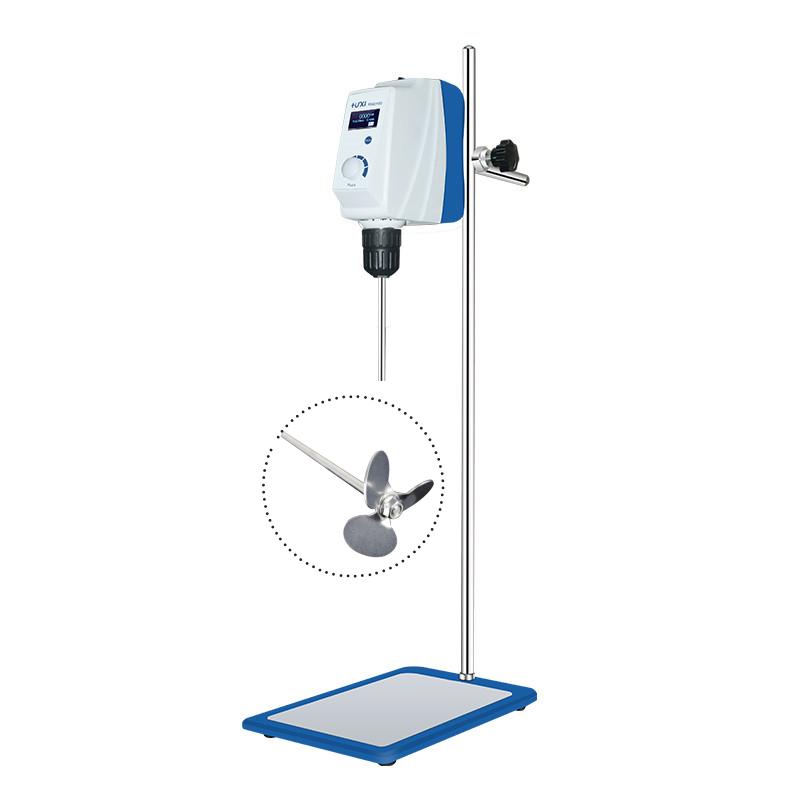

HUXI LCD top-mounted Stirrer (model RWD50/20030002/20030012) is a powerful electric mixing equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display screen, with automatic protection function for overload and abnormal conditions, can be capable of high load and long-term continuous work, and is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to achieve mixing of medium and high viscosity liquids. The Impeller is fixed with a self-locking chuck, and the torque can be automatically adjusted according to the viscosity change of the sample to ensure the mixing effect. When there is an overload, short circuit or abnormal situation, the system will automatically cut off the circuit and alarm to ensure the safety of the experiment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Rotation speed and Working time set by LCD screen
3. Start the equipment and start the mixing operation
4. Working time can be fine-tuned as needed during the working process
5. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ensure that the Ambient Temperature is between 5-40 ° C and the relative humidity does not exceed 80%
• Impeller clamping diameter range should be between 0.5-10 mm
• Note that the maximum Processing capacity of the equipment is 20L and the maximum viscosity is 10000mPa · s
• In case of overload or abnormal situation, the device will automatically stop and display a fault
• Do not use the device beyond the range of specifications
• Make sure that the chuck protective cover and non-slip pad are in good condition when using
