Overview

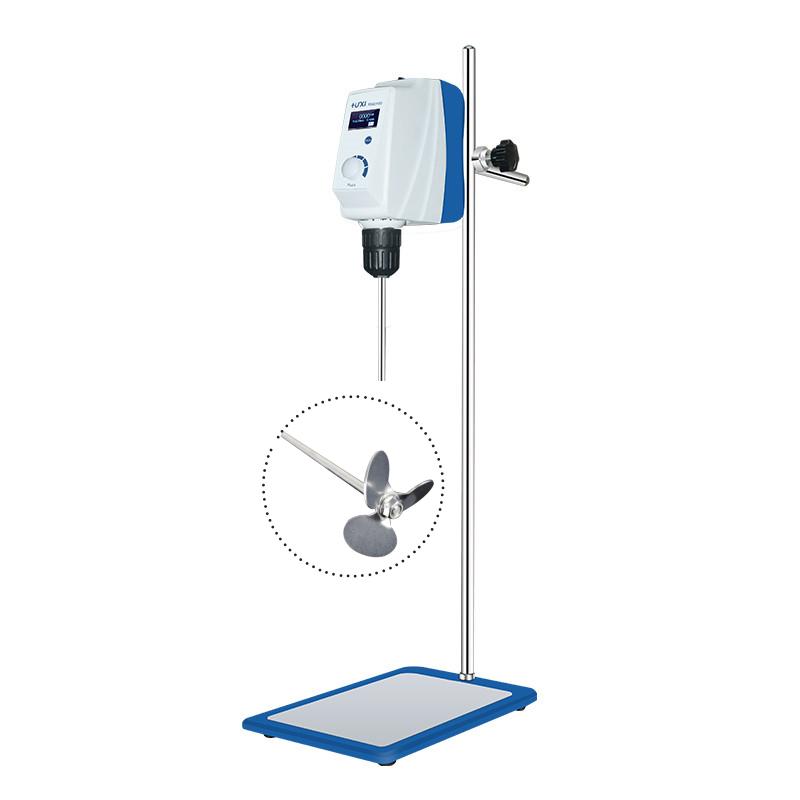

HUXI LCD top-mounted Stirrer (model RWD50/20030091/20030012) is an top-mounted electric mixing equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display screen, with automatic protection function for overload and abnormal conditions, can be capable of high load and long-term continuous work, and is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields to ensure the safety of laboratory operations.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. With overload and motor protection functions, automatically cut off the circuit and alarm when abnormal
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to generate tangential, axial or radial flow, forming different degrees of turbulence and shear force to achieve mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. The torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller Type
2. Impeller fixed by self-locking chuck
3. Rotation speed and time parameters
4. Start Stirrer for mixing operations
5. Monitor operating status and fine-tune parameters if necessary
Notice
• Only suitable for use within the Permissible Ambient Temperature range of 5~ 40 ° C
• The relative humidity should not exceed 80%
• Power supply voltage must be within the range of 100-240VAC
• Make sure the chuck protective cover and non-slip pad are in good condition before use
• When there is a fault display, the device will automatically stop, and it needs to be checked and troubleshooted before use.
• Select the appropriate Impeller type based on sample viscosity
• Regularly check the operating status of the equipment to ensure that the Safety protection function is normal
