Overview

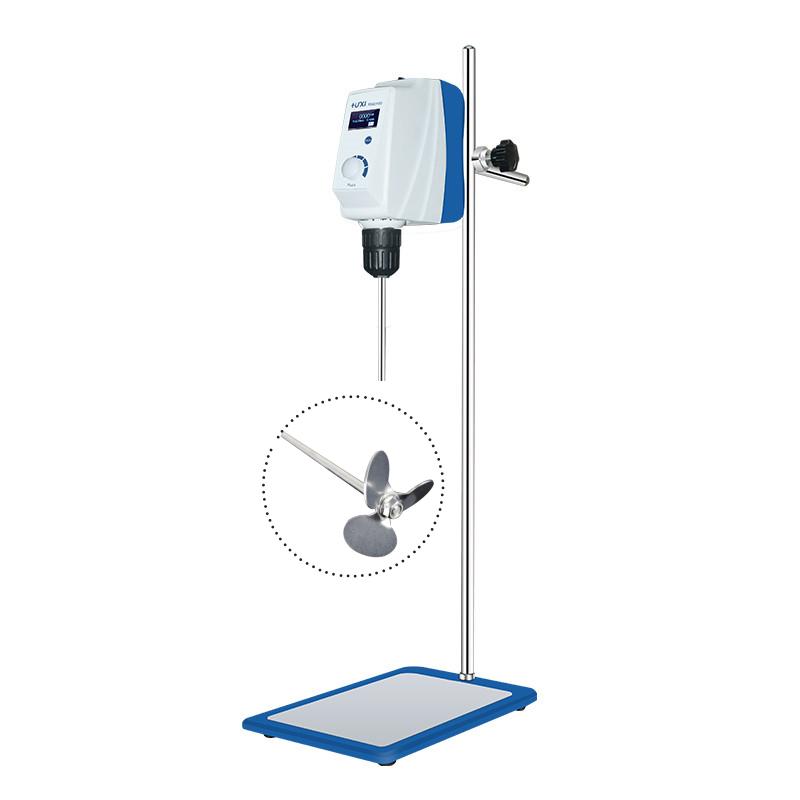

HUXI LCD top-mounted Stirrer (model RWD50/20030090/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting and fixing clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. It is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to generate tangential, axial or radial flow, forming different degrees of turbulence and shear force to achieve mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. The torque can be automatically adjusted according to the sample viscosity to ensure stable operation under different viscosity conditions.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Rotation speed and Working time set by LCD screen
3. Select coarse or fine-tuning mode for parameter fine-tuning as needed
4. Start the equipment and start the mixing operation
5. Working time parameters can be adjusted in real time during equipment operation
6. After the mixing is completed, the equipment will automatically stop
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ℃
• The relative humidity should not exceed 80%
• Note that the clamping diameter of the Impeller should be within 0.5-10 mm
• The device has an automatic protection function, which will automatically stop and display when there is a failure
• Use the matching chuck protective cover and non-slip pad to ensure safe operation
• Select the appropriate Impeller type based on sample viscosity
• Avoid overloading for long periods of time
