Overview

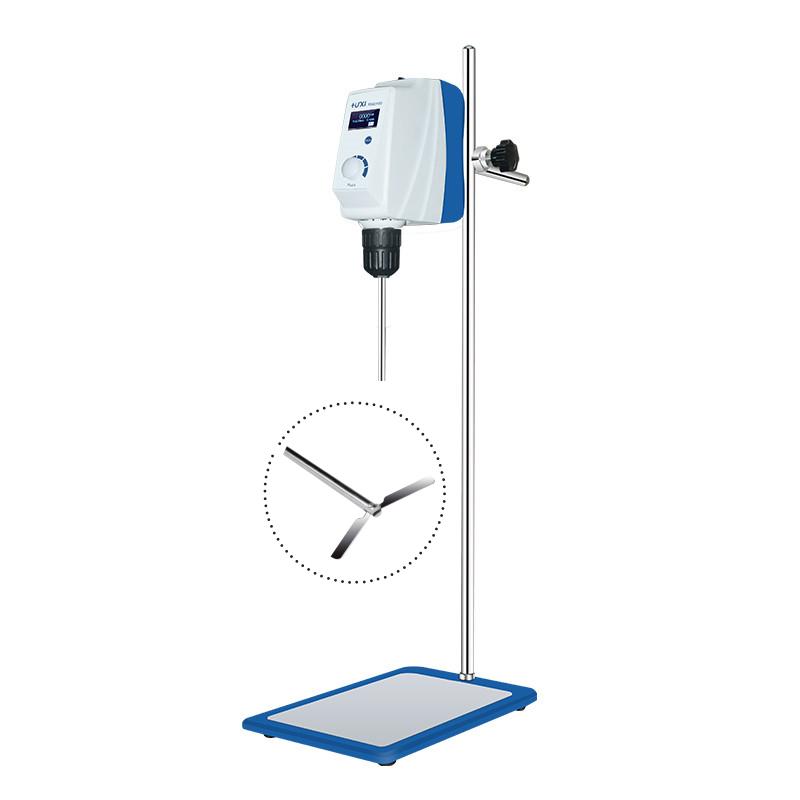

HUXI LCD top-mounted Stirrer (model RWD50/20030064/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting and fixing clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. It is mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity, ensuring stable operation under different viscosity conditions.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and time parameters
4. Start the equipment and start stirring
5. Monitor operating status and fine-tune parameters if necessary
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function, and deal with the fault display in time
• Use chuck protective cover and non-slip pad to ensure safety
• Select the appropriate Impeller type based on sample viscosity
