Overview

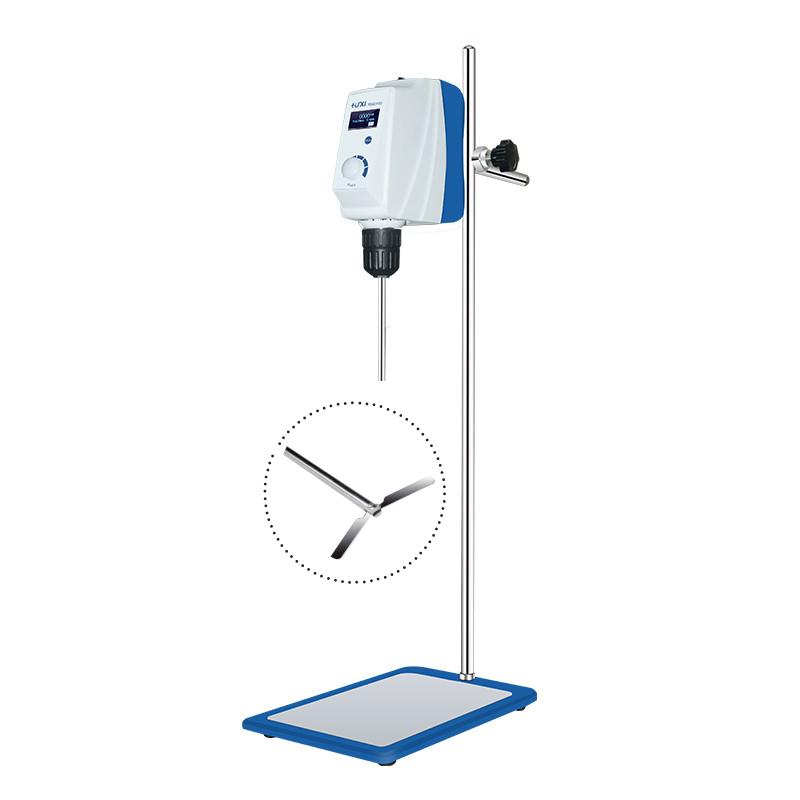

HUXI LCD top-mounted Stirrer (model RWD50/20030065/20030012) is a high-end laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting and fixing clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Rotation speed and Working time
3. Stirrer starts working
4. Parameters can be fine-tuned as needed during the working process
5. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained at 5-40 ℃
• The relative humidity should not exceed 80%
• Pay attention to the use of chuck protective cover and non-slip pad
• The device will automatically stop and alarm when there is an overload or abnormality
• Impeller clamping diameter range is 0.5~ 10mm
• Processing capacity is 20L and maximum viscosity is 10000mPa · s
