Overview

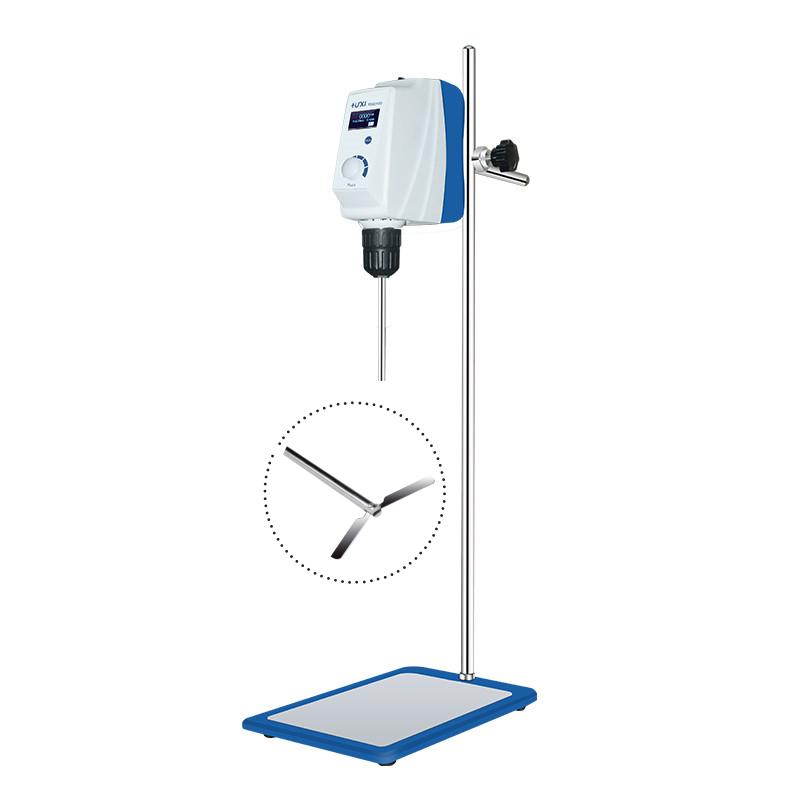

HUXI LCD overhead Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting fixed clip. The product is capable of high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. Mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
Impeller swirl/spin is driven by DC brushless motor to achieve mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller
2. Install Impeller to Self-locking Chuck
3. Rotation speed and time parameters
4. Start the equipment to stir
5. Monitor operating status
6. Turn off the equipment after mixing
Notice
• Do not use outside the Permissible Ambient Temperature range of 5~ 40 ° C
• relative humidity should not exceed 80%
• Check whether the Power supply voltage meets the requirements of 100-240VAC before use
• Pay attention to the use of chuck protective cover and non-slip pad
• The device will automatically stop and alarm when there is an overload or abnormality
• Do not exceed the maximum viscosity of 10000mPa · s
• Regularly check the operating status of the equipment
