Overview

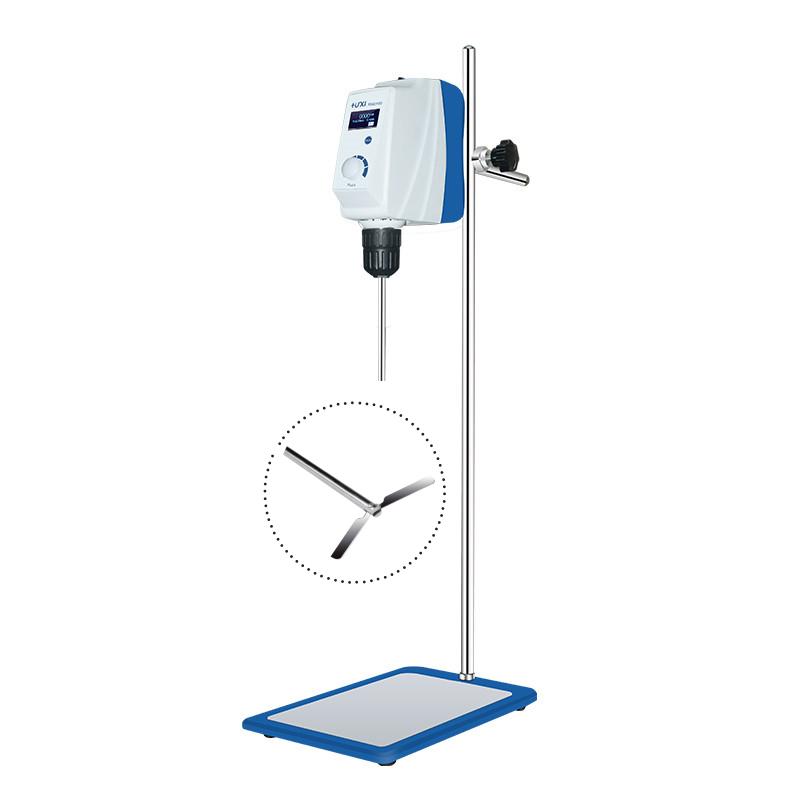

HUXI LCD top-mounted Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids, model RWD50/20030068/20030012. The product adopts LCD display and self-locking chuck design, which is more high-end safety than LED series. It can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to generate tangential, axial or radial flow, creating turbulence and shear force for mixing solid-liquid, liquid-liquid or medium to high viscosity samples. The torque can be automatically adjusted according to the sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller
2. Impeller fixed by self-locking chuck
3. Rotation speed and Working time
4. Start Stirrer for mixing operations
5. Turn off the power after the work is completed
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function to avoid overload use
• Use non-slip mats to ensure equipment stability
• Regularly check the integrity of the chuck protective cover
