Overview

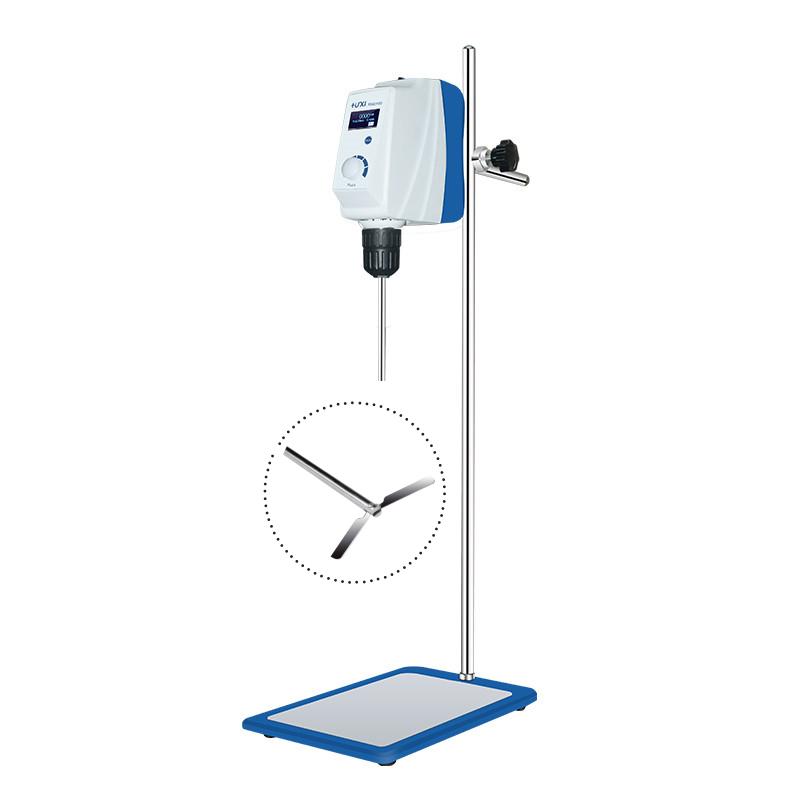

LCD Stirrer is a high-end laboratory equipment of HUXI brand, suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting and fixing clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect. With self-locking chuck fixed Impeller, Rotation speed and Working time are precisely controlled through LCD screen.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Rotation speed and Working time set by LCD screen
3. Select coarse or fine-tuning mode as required
4. Start the equipment and start the mixing operation
5. Monitor the operating status and adjust parameters if necessary
6. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• relative humidity should not exceed 80%
• Pay attention to the overload protection function to avoid overload operation
• Regularly check the chuck protective cover and non-slip pad
• Select the Right Impeller Type and Size
• When a fault display occurs, the device will automatically stop, and it needs to be checked and troubleshooted before use.
