Overview

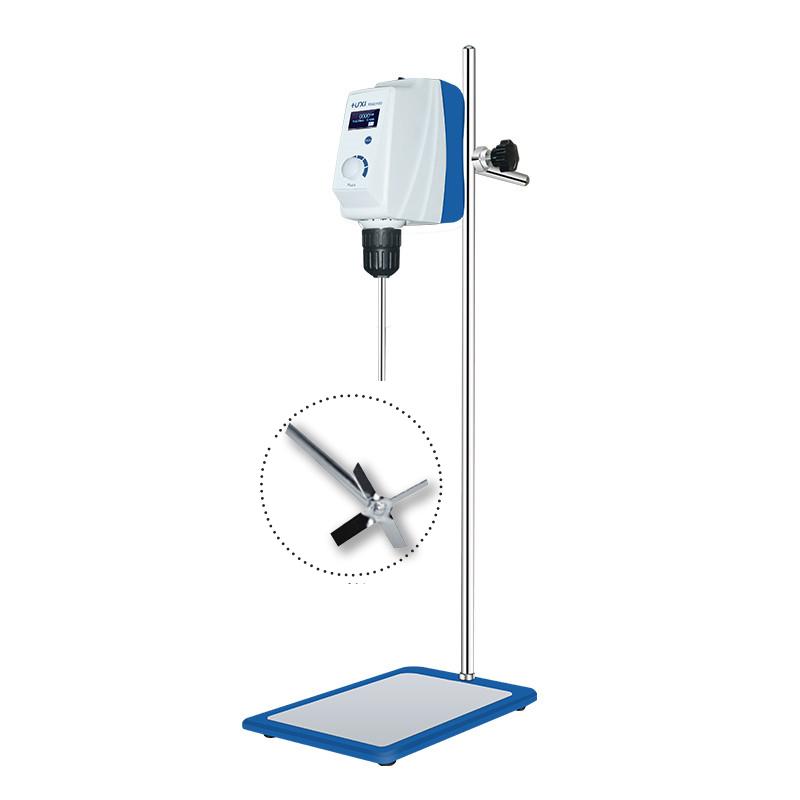

LCD Stirrer is a high-end laboratory mixing equipment of HUXI brand, suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to generate tangential and axial flow, creating turbulence and shear force for mixing solid-liquid, liquid-liquid or medium to high viscosity samples. The torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time
4. Start Stirrer for mixing operations
5. Monitor the operating status and adjust parameters if necessary
Notice
• Power supply voltage check before use
• Ensure that the Ambient Temperature is within the range of 5~ 40 ° C
• The relative humidity should not exceed 80%
• Select Impellers Suitable for Sample Viscosity
• Pay attention to the overload protection function to avoid overload operation
• Regularly check the chuck protective cover and non-slip pad
• Stop use immediately when there is a fault display
