Overview

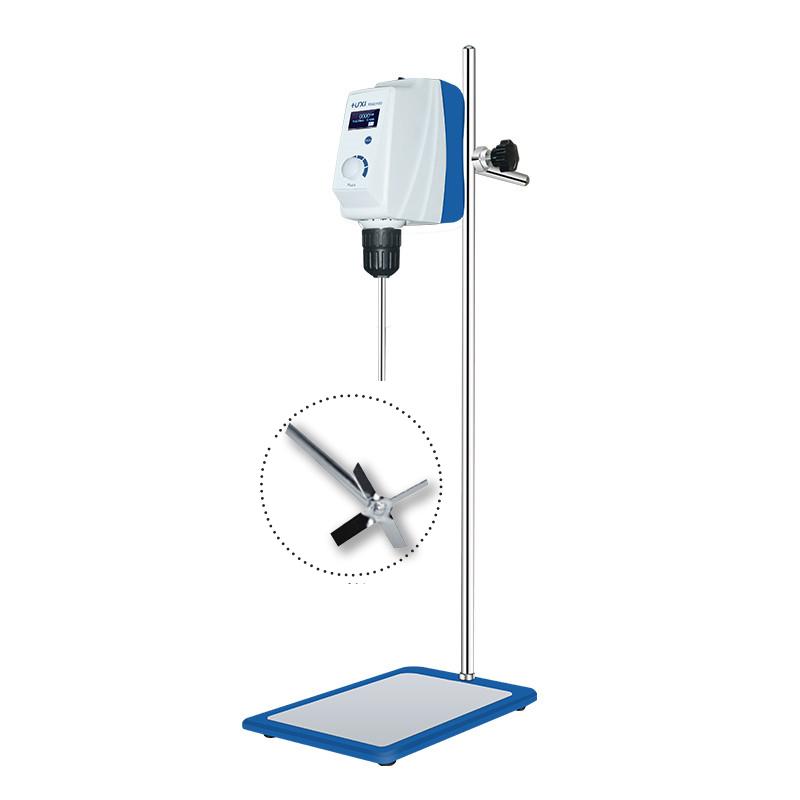

HUXI LCD top-mounted Stirrer (model RWD50/20030036/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display screen, with automatic protection function for overload and abnormal conditions, it is capable of high load, long-term continuous work, outstanding performance and safety. Mainly used for mixing solid-liquid, liquid-liquid or medium and high viscosity samples, widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to realize the mixing of medium and high viscosity liquids. The Impeller is fixed with a self-locking chuck, and the Rotation speed is controlled by stepless speed regulation. The torque can be automatically adjusted according to the viscosity change of the sample to ensure the mixing effect. When there is an overload, short circuit or abnormal situation, the system will automatically cut off the circuit and alarm to ensure the safety of the experiment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Connect the power supply and turn on the device.
3. Rotation speed and Working time set by LCD screen
4. Working time can be fine-tuned as required
Step 5 Start the mixing operation
6. Turn off the device after the experiment is completed
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ℃
• The relative humidity should not exceed 80%
• Impeller should be firmly fixed when installing
• The device will automatically stop when there is overload or abnormal situation, please check the reason before using it.
• Do not use under conditions exceeding the maximum viscosity of 10000mPa · s
• Pay attention to keep the equipment clean and avoid liquids from entering the interior
