Overview

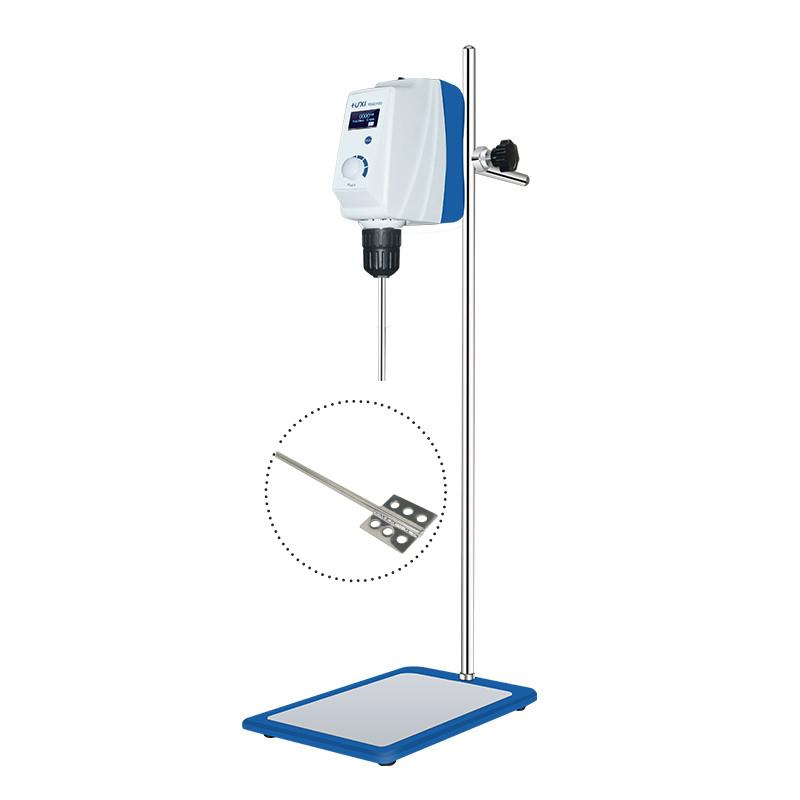

HUXI LCD overhead Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting fixed clip. The product is capable of high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. Mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Connect the power supply and turn it on.
3. Rotation speed and Working time set by LCD screen
4. Stirrer starts working
5. Turn off the power after the work is completed
Notice
• Only allowed at Ambient Temperature 5~ 40 ℃ and relative humidity below 80%
• Power supply voltage within 100-240VAC range before use
• Note that Impeller clamping diameter range is 0.5~ 10mm
• The device will automatically stop and alarm when there is an overload or abnormality
• Use non-slip mats to ensure equipment stability
• Regularly check whether the chuck protective cover is in good condition
