Overview

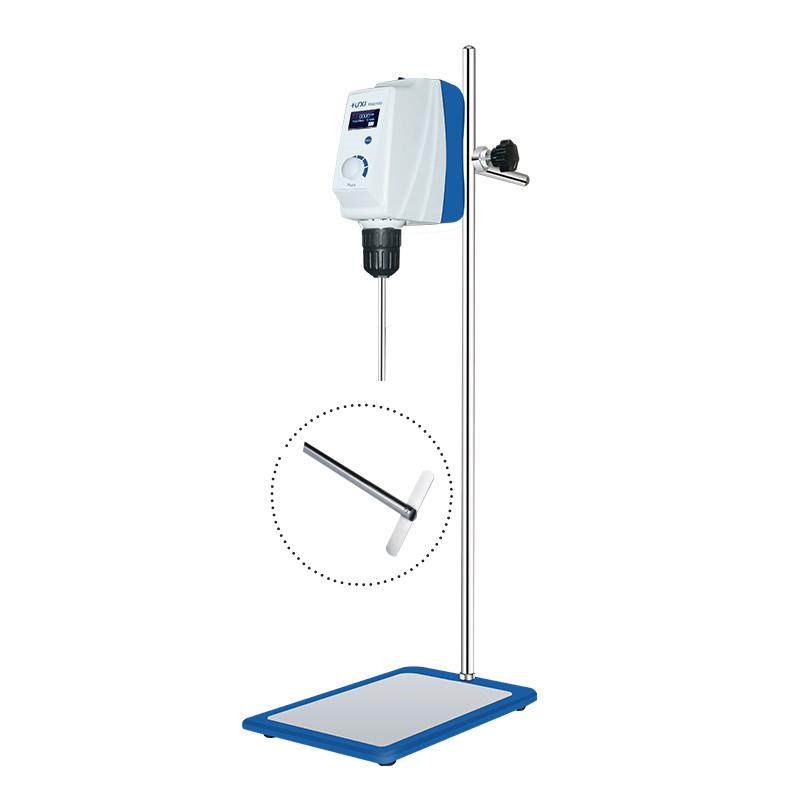

HUXI LCD top-mounted Stirrer model RWD100/20030032/20030012 is an top-mounted powerbasic stirrer suitable for mixing medium and high viscosity liquids. This product is higher-end and safer than the LED series. It adopts self-locking chuck and self-developed Cube lifting fixed clip, which can withstand high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. DC brushless motor, long-term safe operation, outstanding performance
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the change of sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the sample viscosity to ensure stable operation under different viscosity conditions.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time
4. Stirrer starts working
5. Time can be fine-tuned during the work process
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Note that the clamping diameter range of the Impeller is 0.5-10 mm
• The device will automatically stop and alarm when there is an overload or abnormality
• Regularly check the integrity of the chuck protective cover and non-slip pad
