Overview

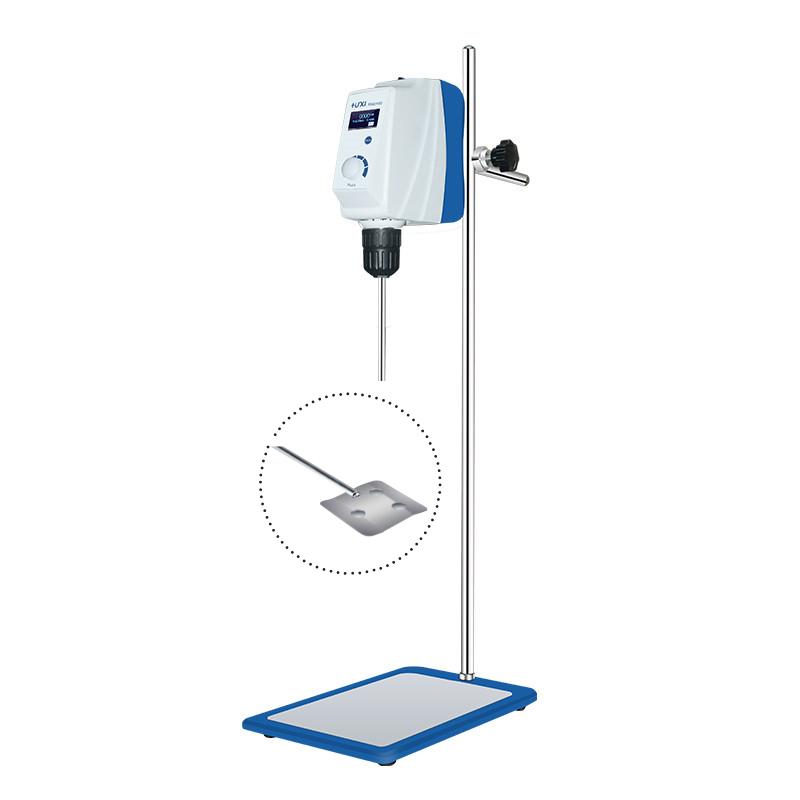

HUXI LCD top-mounted Stirrer (model RWD150/20030041/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts a brushless DC motor, which is capable of high load and long-term continuous work. It has the automatic protection function of overload and abnormal conditions to ensure laboratory safety. It is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to generate tangential, axial or radial flow, creating turbulence and shear force for mixing solid-liquid, liquid-liquid or medium to high viscosity samples. The motor automatically adjusts the torque according to the viscosity change of the sample to ensure stable operation.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Adjust the installation position of the stirring rod through the Cube lifting fixing clip
3. Rotation speed and Working time
4. Start Stirrer for mixing operations
5. Turn off the power after the work is completed
Notice
• Only suitable for Ambient Temperature 5~ 40 ℃, relative humidity below 80%
• Power supply voltage within 100-240VAC range before use
• Pay attention to the safety of the chuck protective cover and non-slip pad
• When there is an overload or abnormality, the device will automatically stop and display a fault
• Select the appropriate Impeller type based on sample viscosity
• Regularly check the operating status of the equipment
