Overview

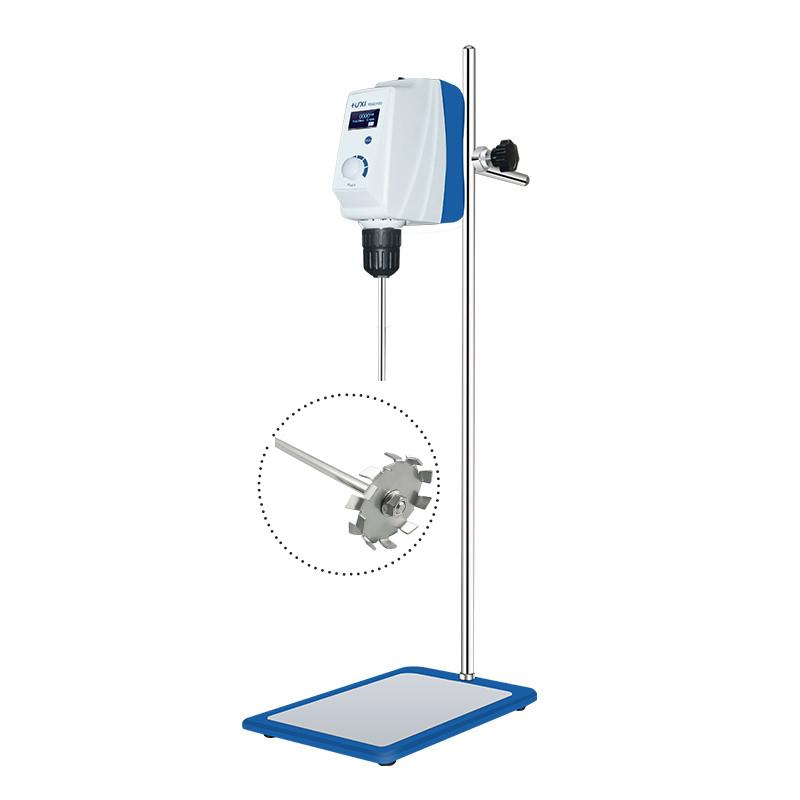

HUXI LCD Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting and fixing clip design. The product is capable of high load and long-term continuous work, and has the automatic protection function of overload and abnormal conditions to ensure laboratory safety. It is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user only needs to adjust the installation position of the stirring rod
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to realize mixing and stirring of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity of the sample to ensure the mixing effect. In the event of overload, short circuit or abnormal situation, the equipment will automatically cut off the circuit and alarm to ensure the safety of the experiment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller Type and Specifications
2. Install the Impeller into the self-locking chuck
3. Rotation speed and Working time set by LCD screen
4. Start the equipment and start the mixing operation
5. Working time can be fine-tuned as needed during the working process
6. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ℃
• The relative humidity should not exceed 80%
• The clamping diameter range should be between 0.5 and 10mm
• Pay attention to the overload protection function of the equipment to avoid overload use
• Use non-slip pads to ensure stable placement of the equipment
• Regularly check whether the chuck protective cover is in good condition
