Overview

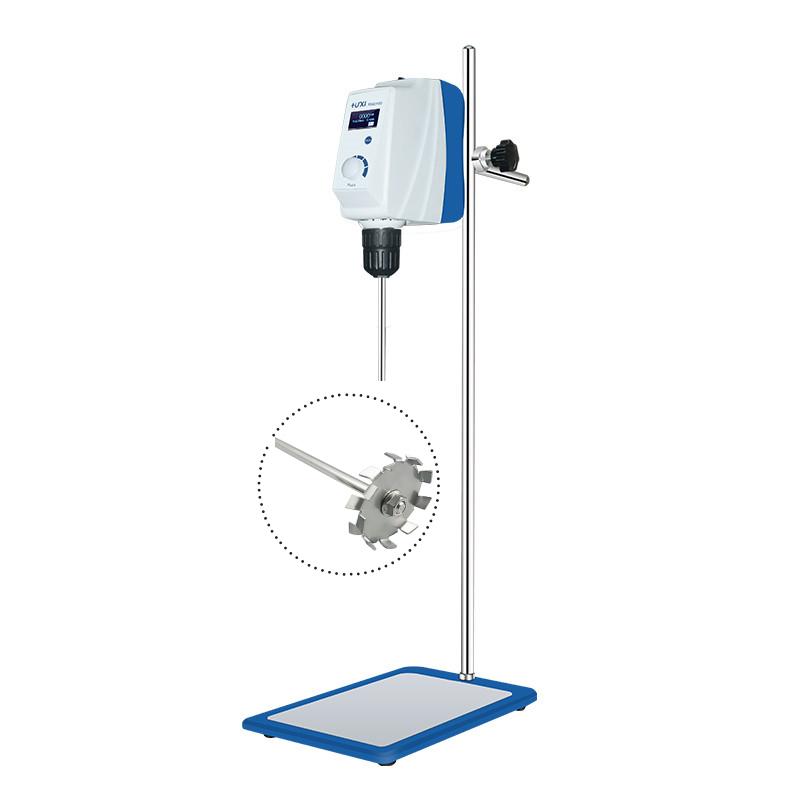

HUXI LCD Top-mounted Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts LCD display screen and self-locking chuck design. The product is capable of high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. Mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Connect the power supply and turn on the device.
3. Rotation speed and Working time set by LCD screen
Step 4 Start the mixing operation
5. Turn off the equipment after mixing
Notice
• Before use, please check whether the Power supply voltage meets the requirements
Do Not Use Outside the Permissible Ambient Temperature Range
• Pay attention to the installation firmness of the Impeller
• The device will automatically stop and alarm when there is an overload or abnormality
Do not use in a humid environment for a long time
