Overview

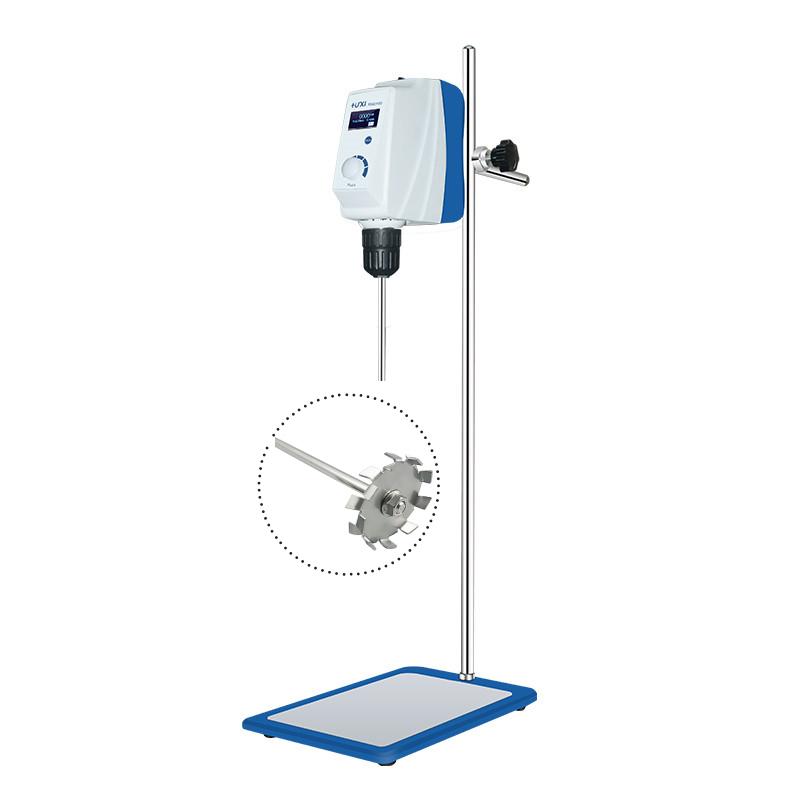

LCD Stirrer is a high-end laboratory mixing equipment of HUXI brand, suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer uses a brushless DC motor to drive the Impeller swirl/spin, generating shear force and flow effects to achieve liquid mixing. The torque can be automatically adjusted according to the sample viscosity, ensuring stable operation under different viscosity conditions.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and time parameters
4. Stirrer starts working
5. Time can be fine-tuned during the work process
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the use of chuck protective cover and non-slip pad
• The device will automatically stop and alarm when there is an overload or abnormality
• Impeller clamping diameter range is 0.5-10 mm
