Overview

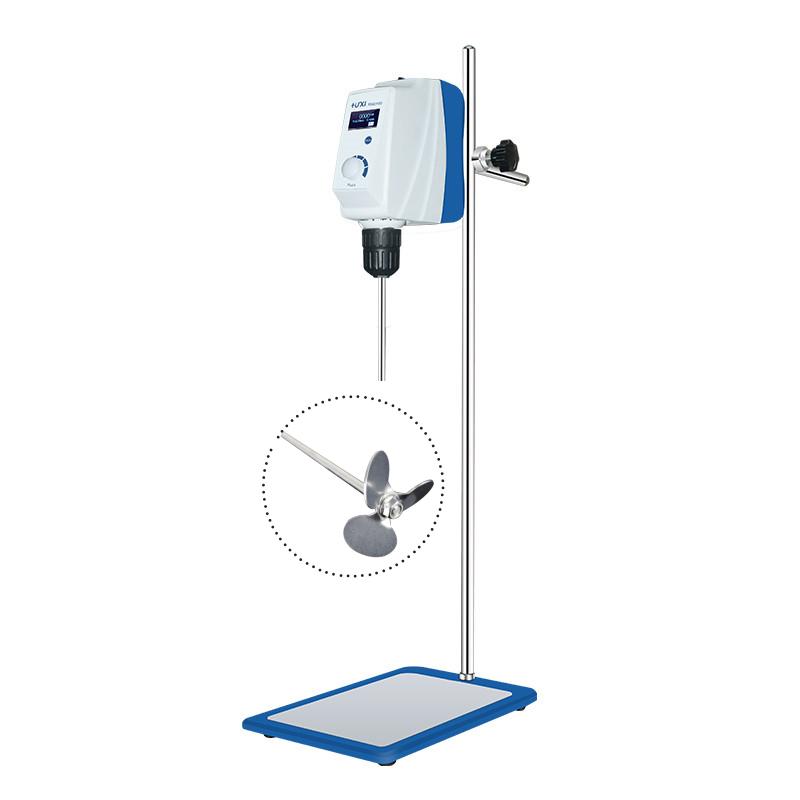

HUXI LCD top-mounted Stirrer (model RWD150/20030086/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display screen, with automatic protection function for overload and abnormal conditions, can be capable of high load, long-term continuous work, outstanding performance and safety. It is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to achieve mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. The Impeller is fixed with a self-locking chuck, and the Cube lifting fixing clip ensures stable operation. The torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Adjust the installation position of the stirring rod
3. Rotation speed and time parameters set by LCD screen
4. Start the equipment for mixing operation
5. Time can be fine-tuned during the work process
6. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5 and 40 ° C
• relative humidity should not exceed 80%
• Pay attention to the overload protection function, and deal with the fault display in time
• Use chuck protective cover and non-slip pad to ensure safety
• Select the appropriate Impeller type based on sample viscosity
• Regularly check the operating status of the equipment
