Overview

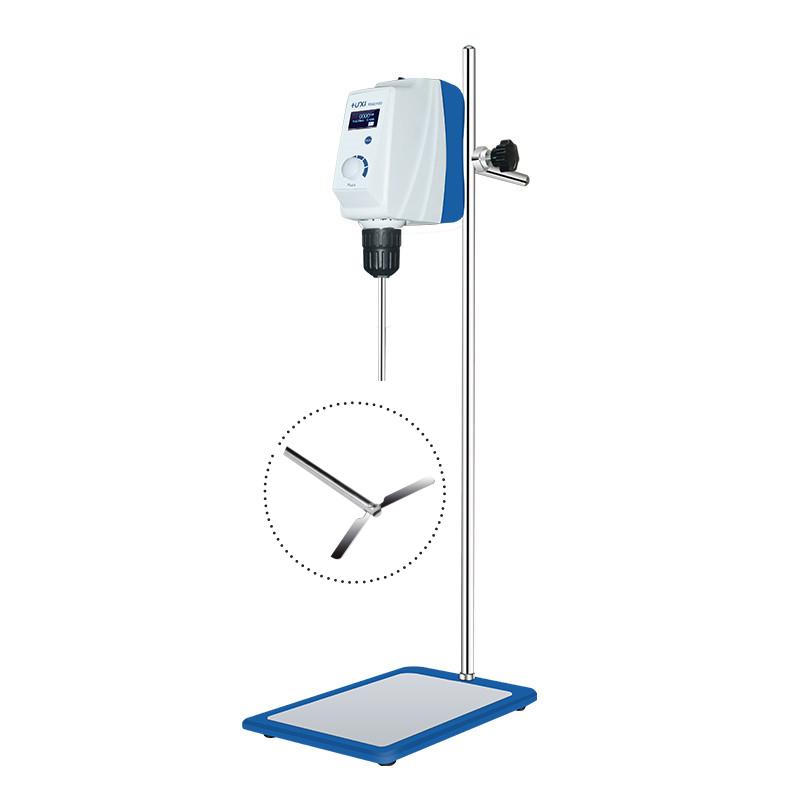

HUXI LCD top-mounted Stirrer model RWD150/20030064/20030012 is an top-mounted powerbasic stirrer suitable for mixing medium and high viscosity liquids. This product is more high-end and safe than LED series. It adopts self-locking chuck and self-developed Cube lifting fixed clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. DC brushless motor, long-term safe operation, outstanding performance
4. Overload and motor protection, automatically cut off the circuit and alarm in the event of overload, short circuit or abnormality
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument, just adjust the installation position of the stirring rod
6. The torque can be automatically adjusted according to the change of sample viscosity, which is convenient for experimental operation
7. Multiple Impellers and Bracket Available
Principle
Driven by a brushless DC motor, the Impeller is fixed by a self-locking chuck, and the torque can be automatically adjusted according to the viscosity of the sample during the stirring process. When there is an overload, short circuit or abnormal situation, the system will automatically cut off the circuit and alarm to ensure the safe operation of the equipment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time set by LCD screen
4. Start the equipment and start stirring
5. Working time can be fine-tuned as needed during the working process
6. Turn off the device after the experiment
Notice
• Permissible Ambient Temperature 5~ 40 ℃
• Allowable relative humidity of 80%
• Power supply voltage range is 100-240VAC
• Rated Frequency 50/60Hz
• Make sure the chuck protective cover and non-slip pad are in good condition before use
• When there is an overload or abnormality, the device will automatically stop and display a fault
• Impeller clamping diameter range is 0.5~ 10mm
