Overview

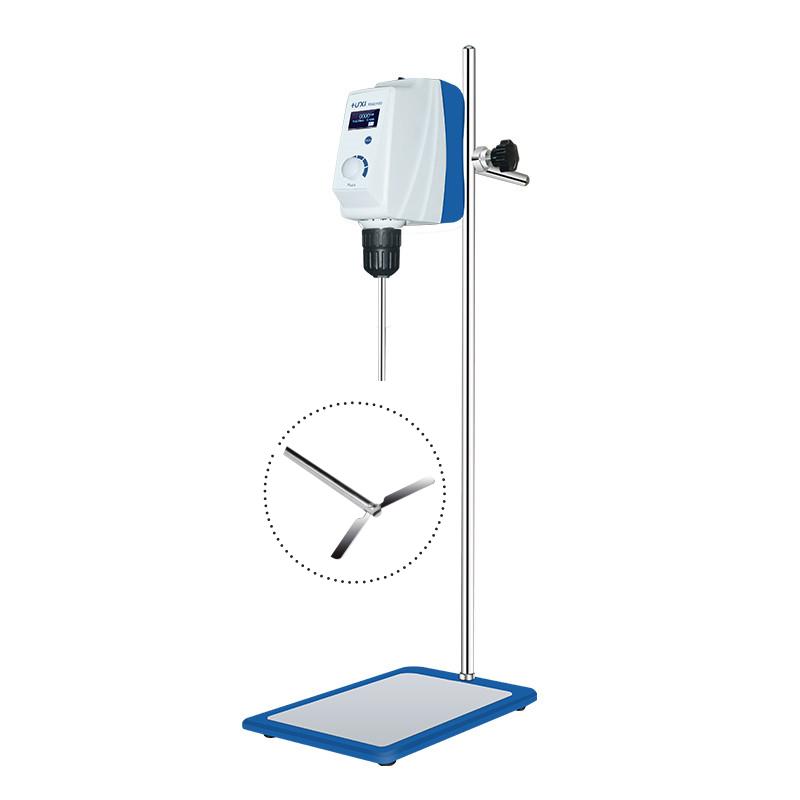

HUXI LCD top-mounted Stirrer model RWD150/20030005/20030012 is a high-end laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts a self-locking chuck and a self-developed Cube lift fixing clip, which can handle high loads and long-term continuous work. It has an automatic protection function for overloads and abnormal situations to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller
2. Install Impeller to Self-locking Chuck
3. Rotation speed and time parameters
4. Start Stirrer for mixing operations
5. Monitor operating status and fine-tune parameters if necessary
Notice
• Check whether the Power supply voltage meets the requirements of 100-240VAC before use
• Ensure that the Ambient Temperature is within the range of 5-40 ° C
• The relative humidity should not exceed 80%
• The clamping diameter range is controlled at 0.5~ 10mm
• Pay attention to the overload protection function and deal with the fault display in time
• Use non-slip mats to ensure equipment stability
• Regularly check the integrity of the chuck protective cover
