Overview

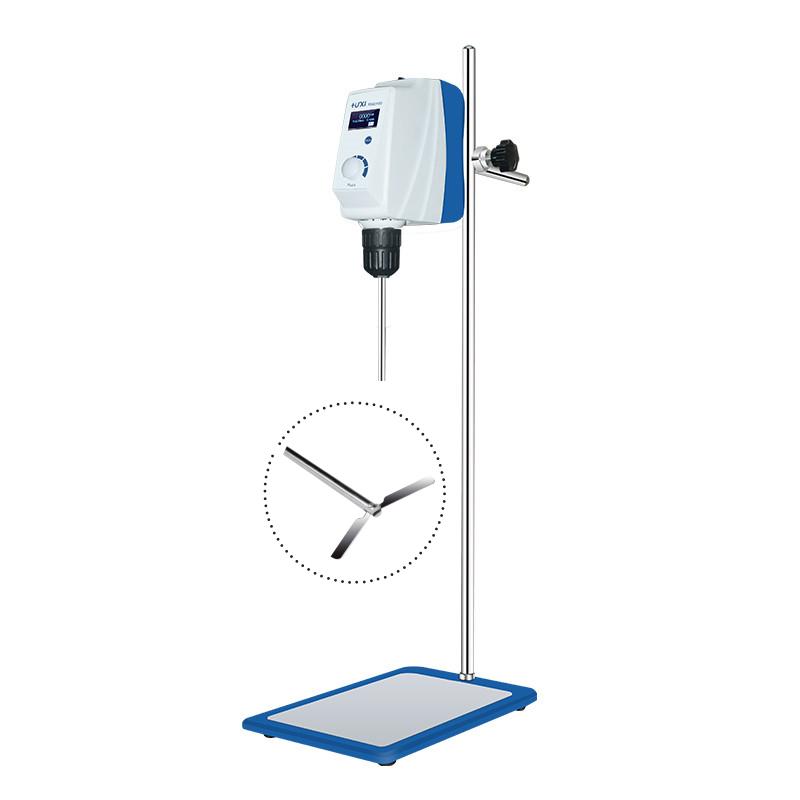

LCD Stirrer is a high-end laboratory mixing equipment of HUXI brand, suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the change of sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity of the sample to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time
4. Start Stirrer for mixing operations
5. Turn off the device after the work is completed
Notice
• Power supply voltage 100-240VAC before use
• Ambient Temperature should be kept in the range of 5~ 40 ℃
• relative humidity should not exceed 80%
• The device will automatically stop and alarm when there is an overload or abnormality
• Do not use under conditions exceeding the maximum viscosity of 80000mPa · s
• The clamping diameter range should be controlled between 0.5 and 10mm
• Regularly check the integrity of the chuck protective cover and non-slip pad
