Overview

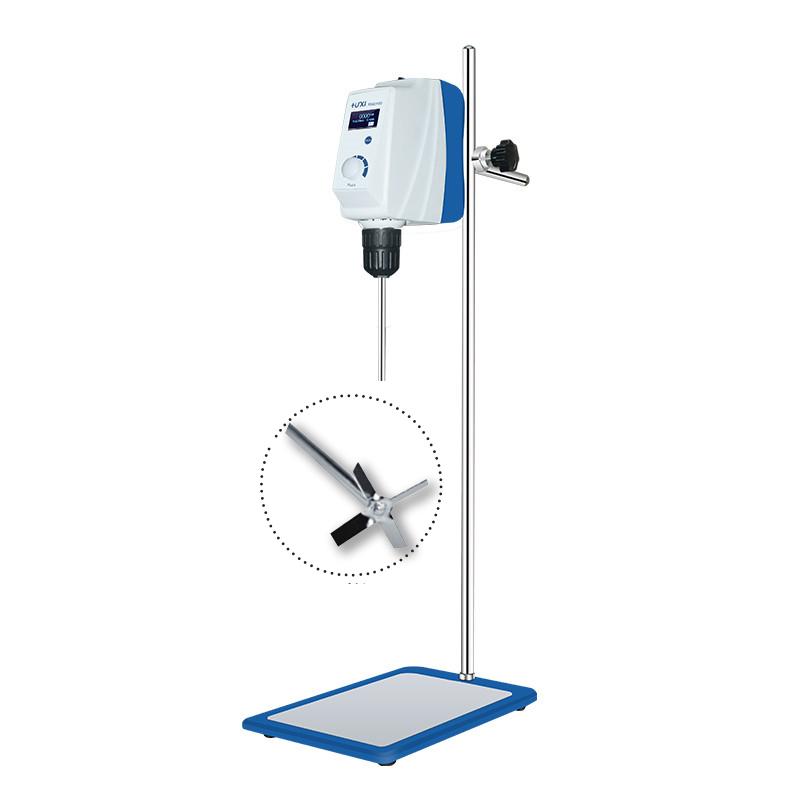

HUXI LCD top-mounted Stirrer model RWD150/20030001/20030012 is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts self-locking chuck and self-developed Cube lift fixing clip, which is capable of high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. With overload and motor protection functions, the circuit is automatically cut off and alarmed if there is an abnormality
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller Type
2. Install Impeller into Self-locking Chuck
3. Set the required Rotation speed and time parameters
4. Stirrer starts working
5. Time can be fine-tuned during the work process
6. Turn off the equipment after mixing
Notice
• Power supply voltage 100-240VAC before use
• Ambient Temperature should be kept within 5~ 40 ℃
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function, it will automatically stop if there is an abnormality.
• Use non-slip mats to ensure equipment stability
• Select the Right Impeller Type and Size
• Regularly check the integrity of the chuck protective cover
