Overview

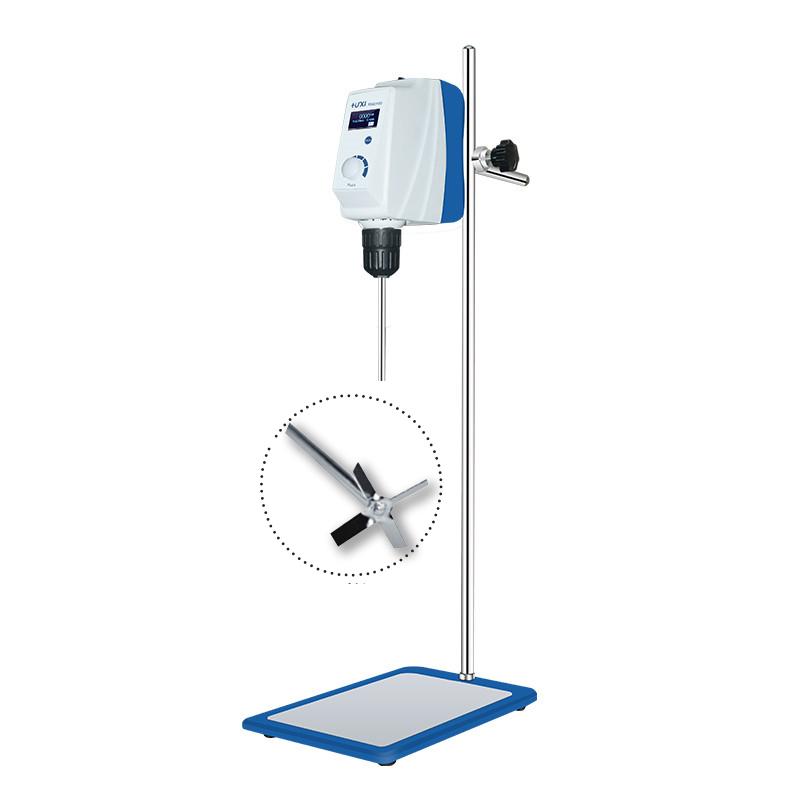

HUXI LCD top-mounted Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting and fixing clip design. The product is capable of high load and long-term continuous work, and has the automatic protection function of overload and abnormal conditions to ensure laboratory safety. It is mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Rotation speed 30-2200rpm, can be constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the change of sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the sample viscosity to ensure stable operation under different viscosity conditions.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the Right Impeller and Install
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time
4. Start the equipment to stir
5. Turn off the device after the work is completed
Notice
• Power supply voltage check before use
• Ensure that the Ambient Temperature is within the range of 5~ 40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function to avoid overload use
• Regularly check the chuck protective cover and non-slip pad
• Select Impeller Type Suitable for Sample Viscosity
