Overview

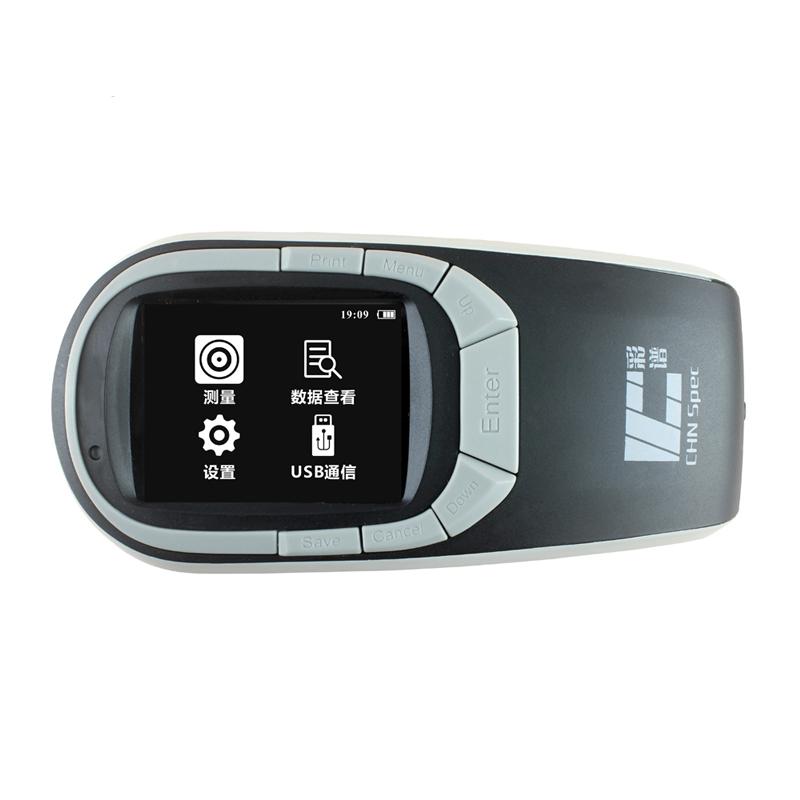

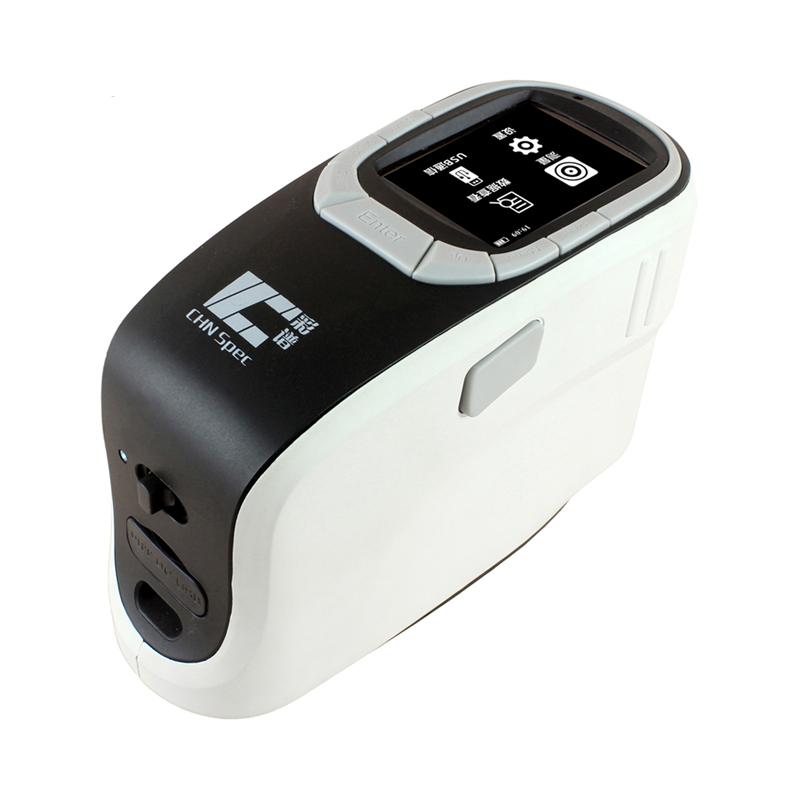

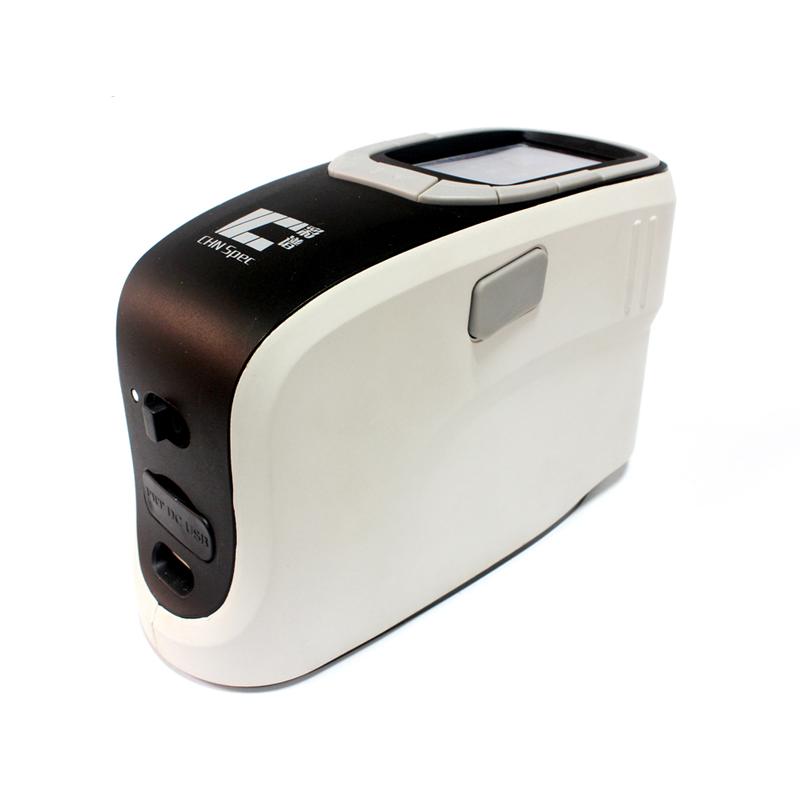

The CHNSPEC CS-600B Colorimeter is a Handheld Colorimeter designed for measurement of 4mm caliber. It can not only measure color differences, but also analyze colors. It has camera viewing function. The large display screen intuitively displays measurement values, supports Data storage and personalized parameter settings. The instrument has superior performance and high cost performance. It has obtained national first-class metrology authentication. It is suitable for factory, laboratory and field operations to meet the color quality control needs of various industrial industries.
Features
1. Composite LED Illuminant
2. Repeatability Standard Deviation Delta E * ab 0.05
3. Widely used, suitable for laboratories, factories and construction sites

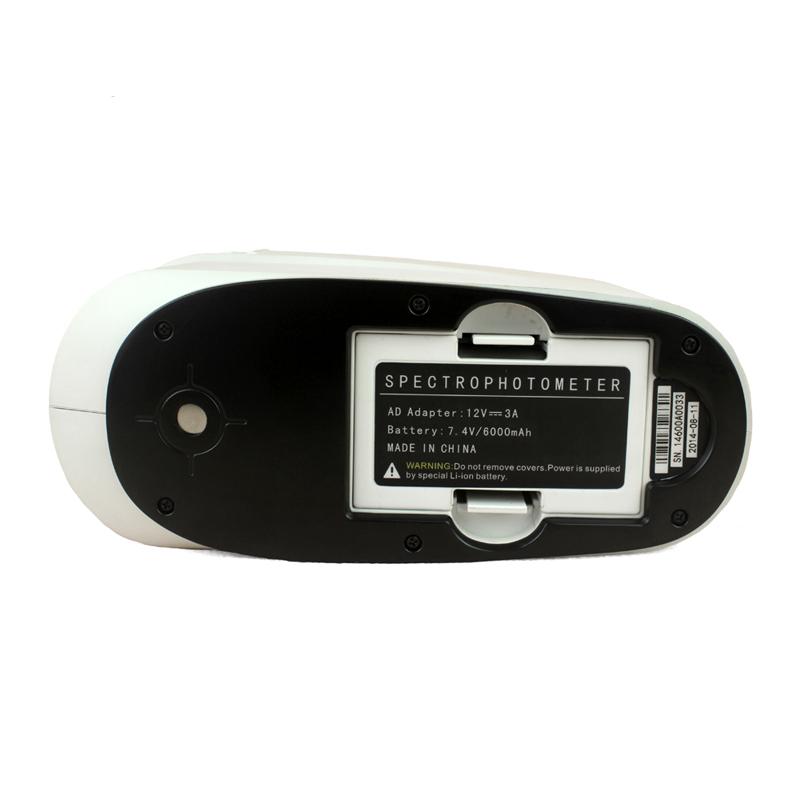

4. Portable design, equipped with large capacity rechargeable lithium battery, support DC power supply, long service life
5. Appearance design novel and beautiful, simple operation
6. With camera view function to prevent measurement deviation
7. Large storage space, can store 100 sets of master standards, each group of up to 200 records
8. Pre-positioning board setting, easy to calibrate, no need for standard blackboard whiteboard
9. Transfer data through USB interface, support PC software operation
10. Dual Measurement mode, simultaneous SCI and SCE measurement
11. Built-in powerful software, including a variety of color equations, Standard light sources and industry indicators
12. Bilingual Chinese and English Operating interface
Principle
CHNSPEC CS-600B Colorimeter uses d/8 illumination mode (scattering Illuminant, 8 degree observation angle), equipped with dual optical path array Sensor and CLEDs full-band equalized Led Illuminant. It analyzes Light spectrum reflectance in the Wavelength range of 400~ 700nm through simultaneous measurement of SCI (including mirror reflection) and SCE (eliminating mirror reflection) modes to achieve High Accuracy color measurement and color difference calculation.
Applications
Laboratory, factory, construction site, quality control, color management
Standards
National level metrology authentication
Steps
1. Power on the instrument and select Operating language
2. Use pre-positioning plates to calibrate
3. Align the measurement area with the camera viewfinder function
4. Select Measurement mode (SCI or SCE) and start measurement
5. Check the measurement results on the display (such as chromatic value, color difference value)
6. Store data or transfer to PC via USB interface
7. Use built-in software for further analysis and report generation
Notice
• Operating Ambient Temperature should be 0-45 ℃, relative humidity 80% or lower (35 ℃) to avoid condensation of water vapor
• Storage Ambient Temperature should be -25~ 55 ℃, relative humidity 80% or lower (35 ℃) to avoid condensation of water vapor
Make sure the battery is fully charged and avoid use in extreme environments
• Regularly calibrate instruments to ensure Measurement accuracy
• Avoid Strong Impact or Vibration to Prevent Damage to Optical inspection parts
