Overview

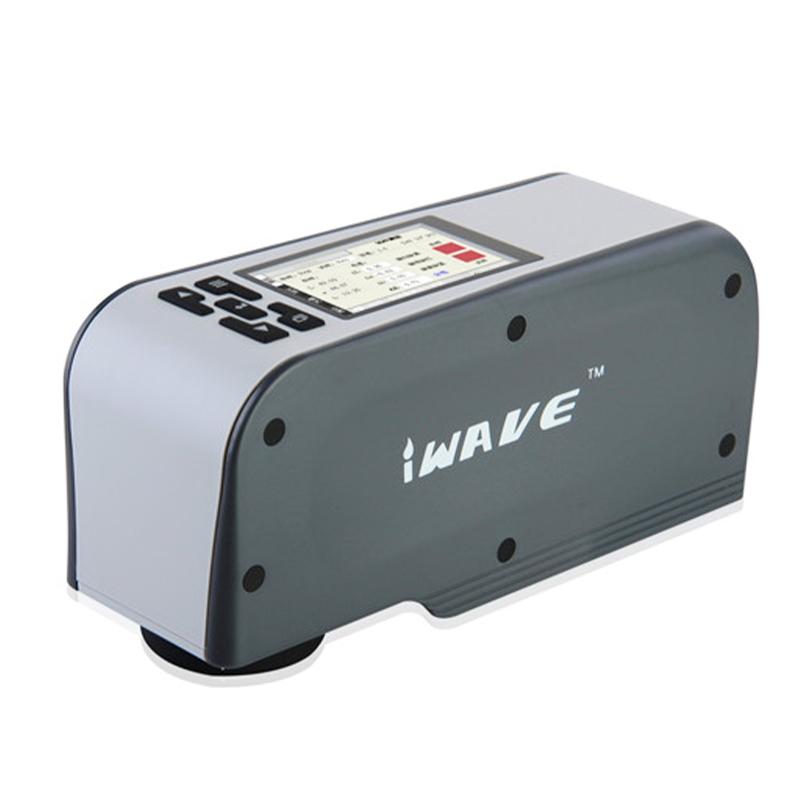

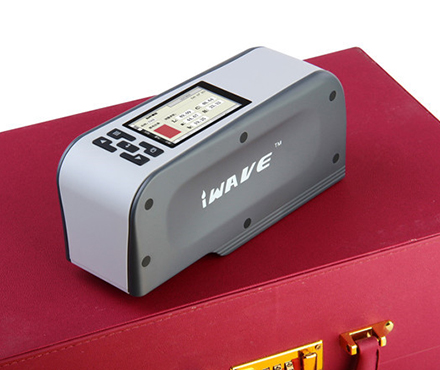

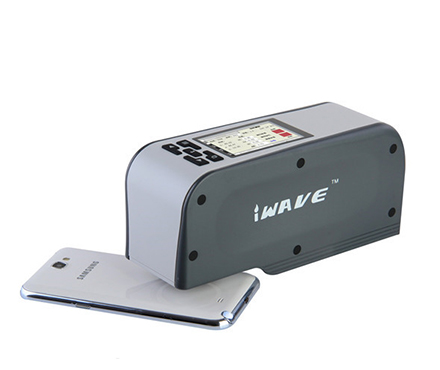

The IWAVE WF32-16mm color difference tester adopts imported high-quality components to ensure measurement Stability and accuracy, and is easy to operate. The instrument is designed with eight kinds of Illuminants, which significantly expands the measurement application range compared with the common 1-2 Illuminant color difference meters in China. The measurement diameter is 16mm, and three display modes of CIELUV, HunterLAB, and sRGB are added, as well as a variety of Color difference formulas, which provide accurate and stable measurement and convenient operation. As a general-purpose color difference tester, it comprehensively considers the general methods and applicable habits of color detection in various industries, providing a reliable guarantee for cross-industry Color communication.
Features
1. Intuitive and easy to operate: using 2.8-inch color screen, large font display is clear; the operation key surface is simple and clear; display technical parameter coordinate map, with Color simulation function
2. Automatic High Accuracy: built-in whiteboard, automatic correction when turned on; more accurate positioning function of measurement port; repeability accuracy of 0.05, most of them between 0.01-0
3. Professional and practical: Multiple Measurement modes, three caliber options; Five Color Spaces, Eight Color difference formulas, Eight Illuminants; Portable design, measurement without light leakage
4. Long-lasting power supply: Power Adapter or high-capacity polymer battery can be used 6000-8000 times per charge
5. Appearance design: moderate size and weight, good feel; accept customized services and provide Color measurement solutions
Principle
The IWAVE WF32-16mm color difference tester adopts 8 °/d illumination mode, uses a photodiode array Sensor, and uses LED blue light to excite the illumination Illuminant for measurement. Measurement range is L: 0~ 100, Measurement time is only 0.5 seconds, Color data is accurately analyzed and calculated through various Color difference formulas and display modes.
Applications
Coatings, paints, printing, rubber, leather, Glass, toys, building materials, Spinning & weaving, home appliances
Standards
SGS credibility identification
Steps
1. Automatic correction when turned on
2. Use the measurement port positioning function to accurately locate the measured object
3. Select the appropriate Measurement mode and parameters
4. Take measurements and read data
5. Data can be transferred via USB or RS-232 interface
Notice
• Glass protective plate when using 16mm caliber for objects with wet surface to prevent internal contamination
• Operating Ambient Temperature 0 ℃ -40 ℃, relative humidity below 85%, no condensation
• Storage Ambient Temperature -20 ℃ -50 ℃, relative humidity below 85%, no condensation
• Ensure accurate positioning during measurement to avoid light leakage affecting Measurement accuracy
