Overview

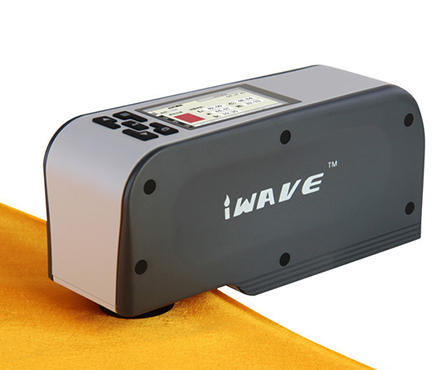

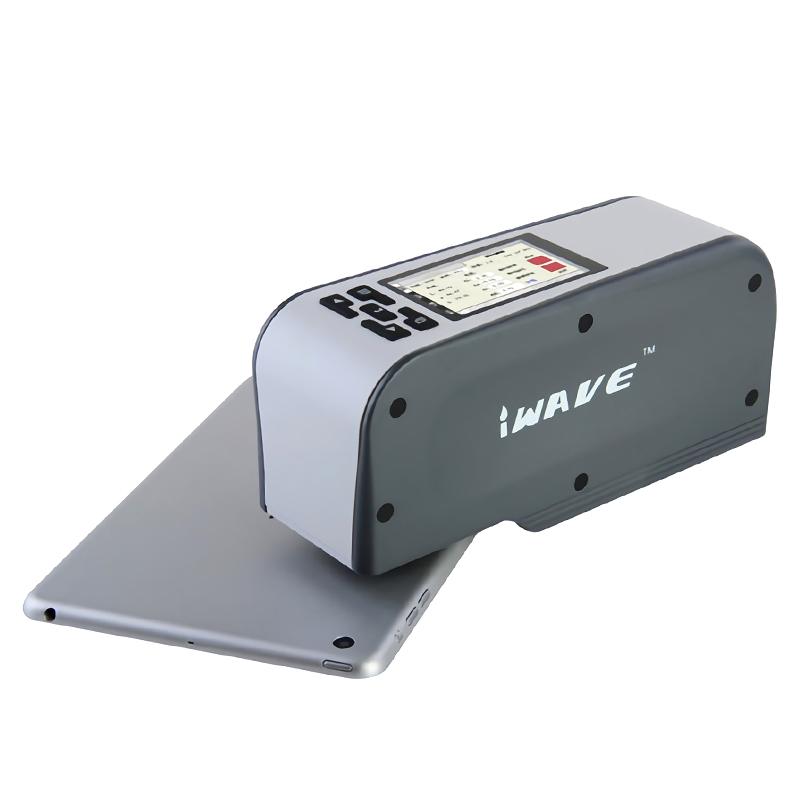

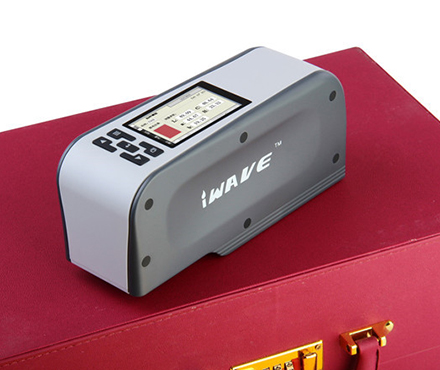

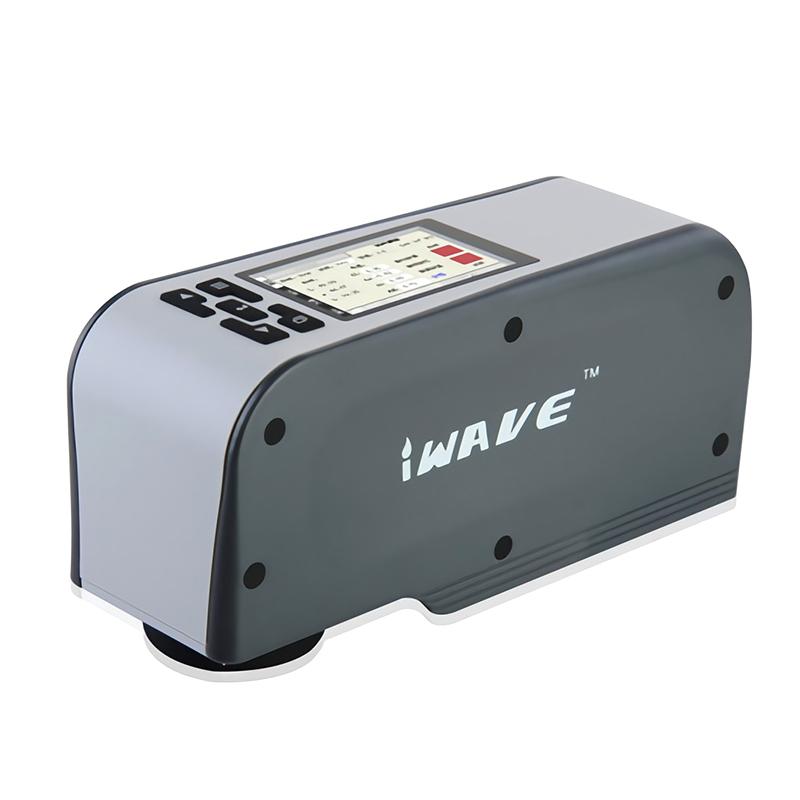

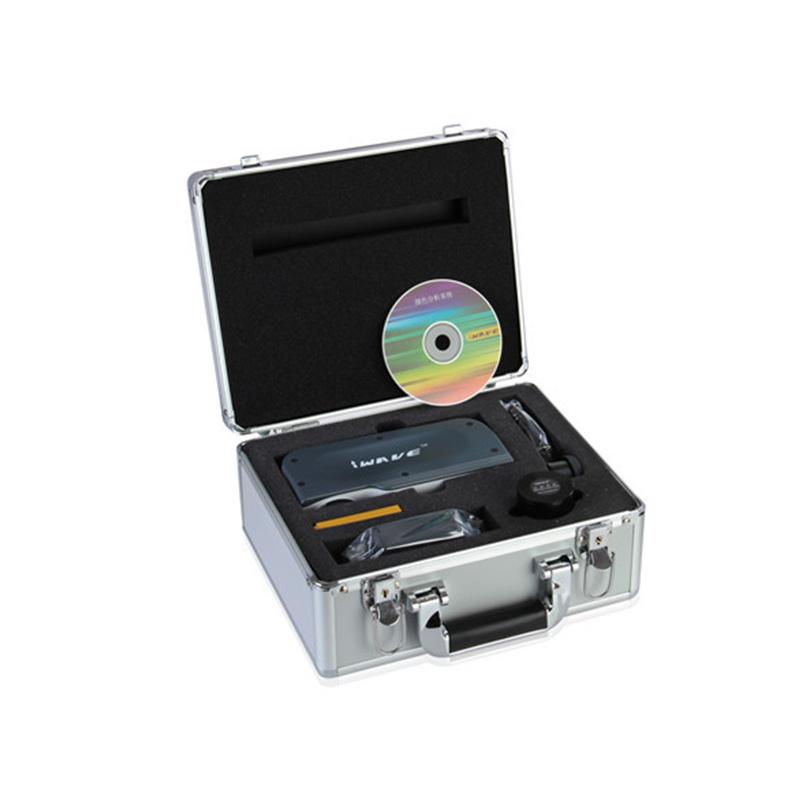

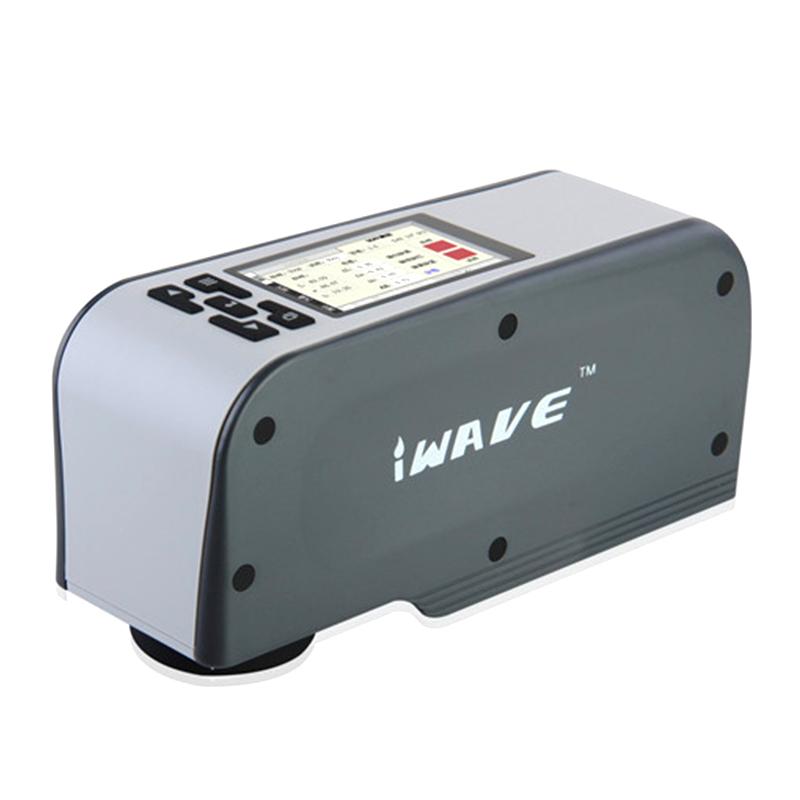

IWAVE WF32-8mm color difference tester adopts imported high-quality components, with high measurement Stability and accuracy. The instrument is designed with eight kinds of Illuminants, which greatly expands the measurement application range compared to 1-2 common Illuminant products on the market. The measurement diameter is 8mm general-purpose, and three display modes of CIELUV, HunterLAB and sRGB are added. It provides a variety of Color difference formulas for accurate and stable measurement and easy operation.
Features
1. Adopt 2.8-inch color screen, large font and clear display
2. The operation key surface is simple and clear, you can see it at a glance
3. Display technical parameter coordinate map, Color simulation, very intuitive
4. Built-in whiteboard, automatic correction when turned on, fast and convenient
5. measurement port positioning function, direct and accurate positioning
6. Sexual repeability accuracy of 0.05, most between 0.01-0
7. Multiple Measurement modes, Eight Color difference formulas, Eight Illuminants
8. Portable design, stable body, no light leakage during measurement
9. High capacity polymer battery, can be used 6000 to 8000 times on a single charge
10. Customized color difference tester according to customer requirements
Principle
IWAVE WF32-8mm color difference tester adopts 8 °/d illumination mode and photodiode array Sensor, and performs Color measurement through LED blue light excited illumination Illuminant. Measurement range is L: 0~ 100, Measurement time is only 0.5 seconds, using SCI and SCE light-containing mode to ensure the accuracy and Reliability of measurement data.
Applications
Coatings, paints, printing, rubber, leather, Glass, toys, building materials, Spinning & weaving, home appliances
Standards
SGS credibility identification
Steps
1. Automatic correction when turned on
2. Use the measurement port positioning function to accurately locate the measurement target
3. Select the appropriate Measurement mode and Color difference formula
4. Perform measurement, the instrument completes measurement within 0.5 seconds
5. Export data via USB or RS-232 interface
Notice
• Operating Ambient Temperature should be within the range of 0 ℃ -40 ℃
• relative humidity should be less than 85%, no condensation
• Storage Ambient Temperature should be in the range of -20 ℃ -50 ℃
• Avoid contaminating the built-in whiteboard to ensure measurement accuracy
• Regular charging to ensure battery performance
