Overview

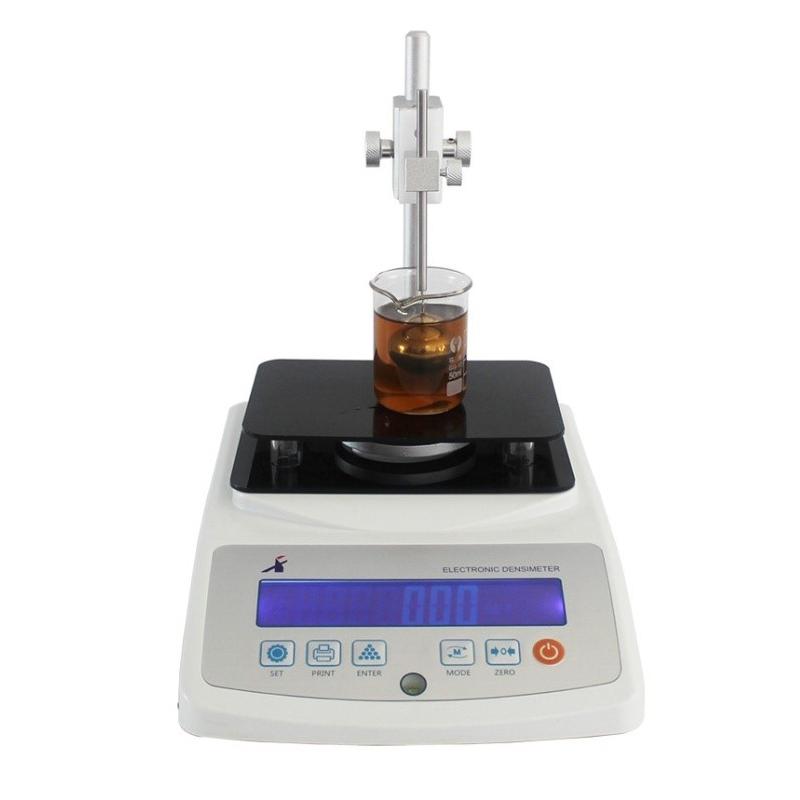

XIONGFA XF-300BH viscous liquid Density Meter is a laboratory instrument dedicated to the measurement of medium and high viscous flowability liquid density. It is suitable for polyester, polyether, mayonnaise, syrup, polyethylene (PE), disperse paint, ceramic pulp, mercury, inks, liquid Resin, ground liquid, asphalt, liquid Adhesive and other fluids. It is widely used in Spinning & weaving, chemical industry, petroleum, electromechanical, food, light industry, construction and other industries as well as laboratories and analysis rooms of Universities & colleges, R & D institutions, and military industries.
Features
1. The immersion depth of Gamma liquid level can be adjusted arbitrarily.
2. The problem of sticking to the bottle mouth using Guy Russack and Hubbard Specific Gravity bottles can be improved.
3. Gamma ball can be easily removed and replaced, easy to operate.
4. Any weight of Gamma ball weight can be its Standard value, not limited by volume.
5. Can compensate for errors caused by air buoyancy.
Principle
According to the provisions of GB/T21862, GB/T15223, GB/T6750, ASTMD1475, ISO 2811-2, ISO1675, DIN53217-3, the volume replacement method of Archimedes immersed Gamma ball is adopted, and the special design of the special specific gravity meter is used to accurately read the measured value.
Applications
Polyester, Polyether, Mayonnaise, Syrup, Polyethylene (PE), Disperse Paint, Ceramic Pulp, Mercury, inks, Liquid Resin, Ground Liquid, Asphalt, Liquid Adhesive, Medium and High Viscosity Flowability Liquid Research Laboratory, Grease, paints, inks, Coatings, Plastics, Stock, Rubber, emulsion, detergent, Resin, Condensed Milk, Cream, Cosmetics, Spinning & weaving, Chemical, Petroleum, Electromechanical, Food, Light Industry, Construction, Universities & colleges, R & D institutions, Military Industry
Standards
GB/T21862、GB/T15223、GB/T6750、ASTMD1475、ISO2811-2、ISO1675、DIN53217-3
Steps
1. At 0.00, take 50ml of liquid and put it into the beaker and put it into the support table above the host.
2. Use the swirl/spin button of the labjack to drop the GAMMA ball into the beaker.
3. And dip the GAMMA ball into the liquid of the beaker, until the liquid level reaches the middle position of the thin ball neck. [You can check this position by testing the density of the water]
4. At this time, the weight of the display screen will appear. After the weight is stable, press the ENTER key to display the density at the top of the screen.
Notice
• Standard accessories include specific gravity testers, lifting equipment, Gammer balls.
• Sample weights range from 0.01g to 300g.
• Sample density accuracy of 0.001 g/cm3.
• Test types include medium and high viscosity liquids and ordinary liquids.
• Test results include specific gravity and Baume.
The test time is approximately 10 seconds.
The standard interface is a standard interface.
