Overview

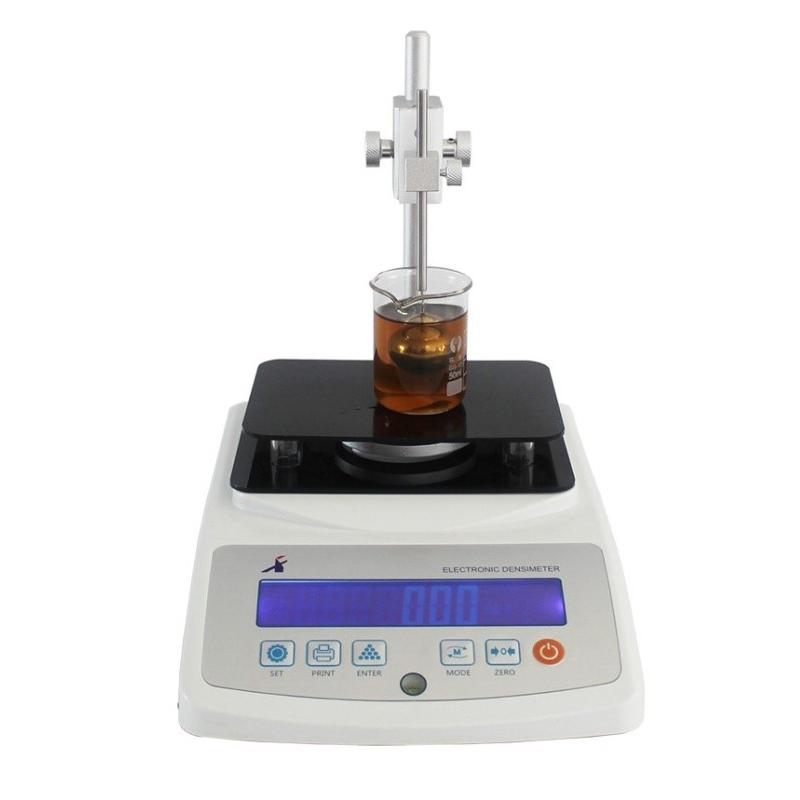

XIONGFA XF-600BH viscous liquid Density Meter is a laboratory instrument dedicated to the measurement of medium and high viscous flowability liquid density. It is suitable for polyester, polyether, mayonnaise, syrup, polyethylene (PE), disperse paint, ceramic pulp, mercury, inks, liquid Resin, ground liquid, asphalt, liquid Adhesive and other fluids. It is widely used in Spinning & weaving, chemical industry, petroleum, electromechanical, food, light industry, construction and other industries as well as laboratories and analysis rooms of Universities & colleges, R & D institutions, and military industries.
Features
1. The immersion depth of Gamma liquid level can be adjusted arbitrarily
2. Can improve the sticking problem of the bottle mouth using Guy Rusak and Hubbard Specific Gravity bottles
3. Gamma ball can be easily removed and replaced, easy to operate
4. Any weight Gamma ball weight can be its Standard value, not limited by volume
5. Can compensate for errors caused by air buoyancy
Principle
According to GB/T21862, GB/T15223, GB/T6750, ASTMD1475, ISO 2811-2, ISO1675, DIN53217-3 standards, using Archimedes immersion Gamma ball volume replacement method, with special specific gravity meter special design, accurately read the measured value.
Applications
Polyester, Polyether, Mayonnaise, Syrup, Polyethylene (PE), Disperse Paint, Ceramic Pulp, Mercury, inks, Liquid Resin, Ground Liquid, Asphalt, Liquid Adhesive, Medium and High Viscosity Flowability Liquid Research Laboratory, Grease, paints, inks, Coatings, Plastics, Stock, Rubber, emulsion, detergent, Resin, Condensed Milk, Cream, Cosmetics, Spinning & weaving, Chemical, Petroleum, Electromechanical, Food, Light Industry, Construction, Universities & colleges, R & D institutions, Military Industry
Standards
GB/T21862、GB/T15223、GB/T6750、ASTMD1475、ISO2811-2、ISO1675、DIN53217-3
Steps
1. At 0.00, take 50ml of liquid and put it into the beaker and put it into the support table above the host.
2. Use the swirl/spin button of the labjack to drop the GAMMA ball into the beaker
3. Dip the GAMMA ball into the liquid of the beaker until the liquid level reaches the middle position of the thin ball neck (this position can be compared by testing the density of the water)
4. At this time, the weight of the display screen will appear. After the weight is stable, press the ENTER button to display the density at the top of the screen.
Notice
• Standard accessories include specific gravity testers, lifting equipment, Gammer balls
