Overview

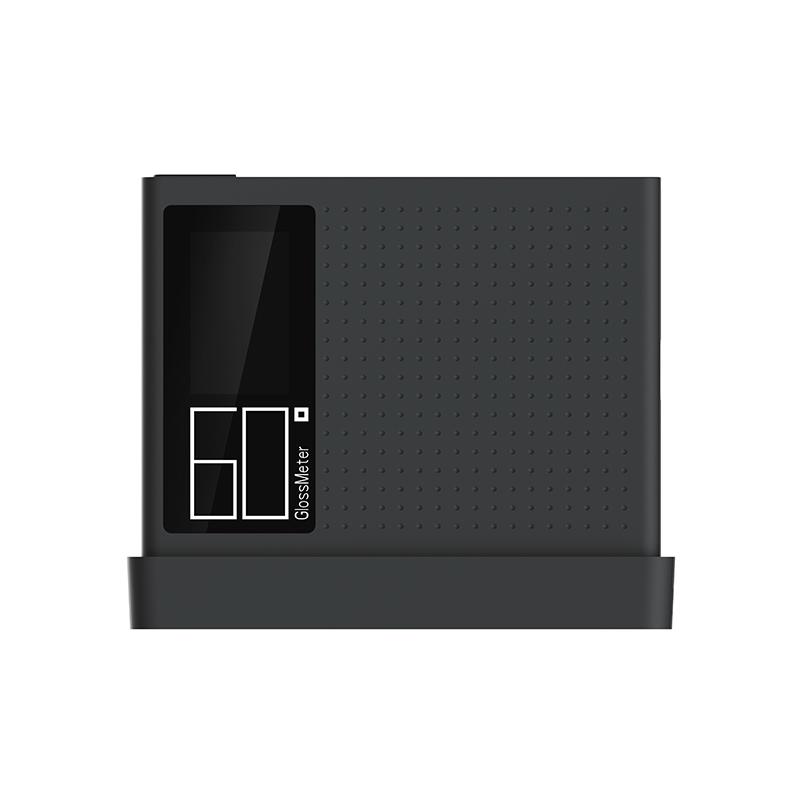

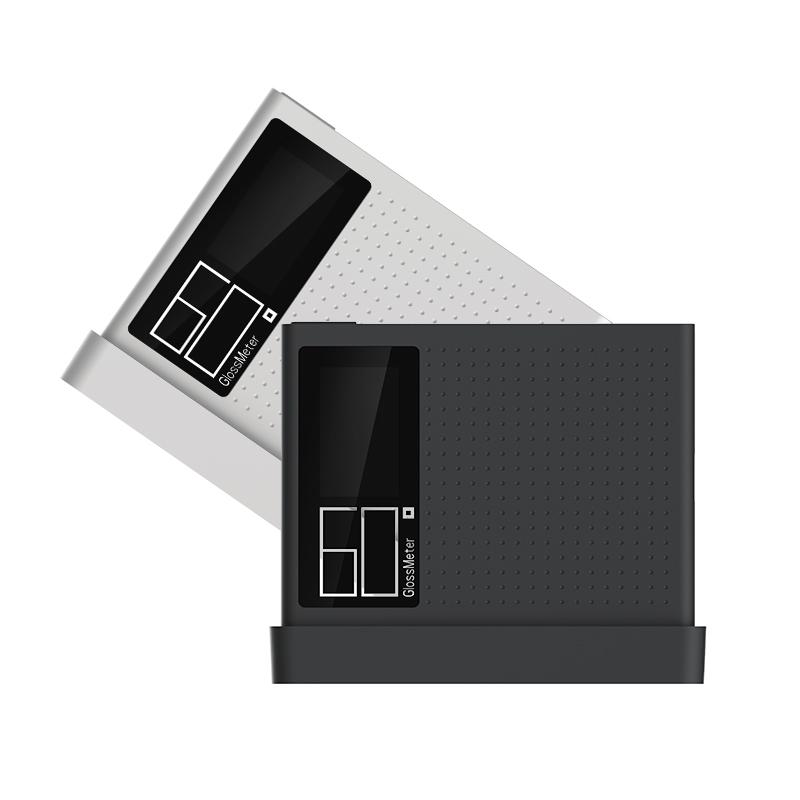

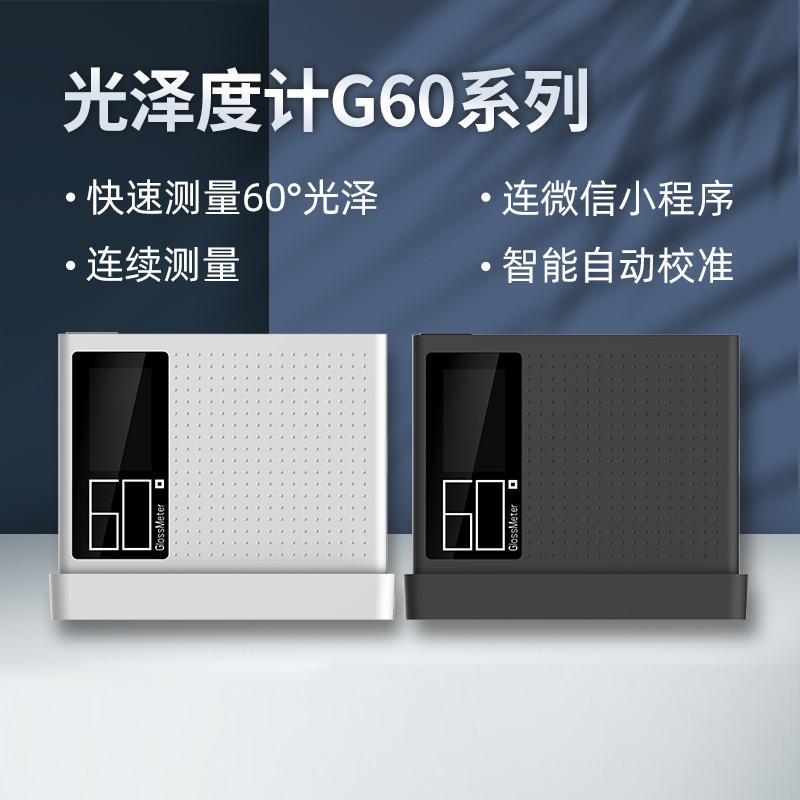

The CHNSPEC DG60 SE glossmeter is a Portable gloss measurement device with 60 ° Measurement Angles, suitable for a variety of surface Glossiness detection. The instrument has an Automatic calibration function, Measurement range 0~ 200GU, Graduation 1GU, Measurement time is less than 1 second, a single charge can be continuous measurement 5000 times, equipped with a full color display and USB Interface, easy to operate and high accuracy.
Features

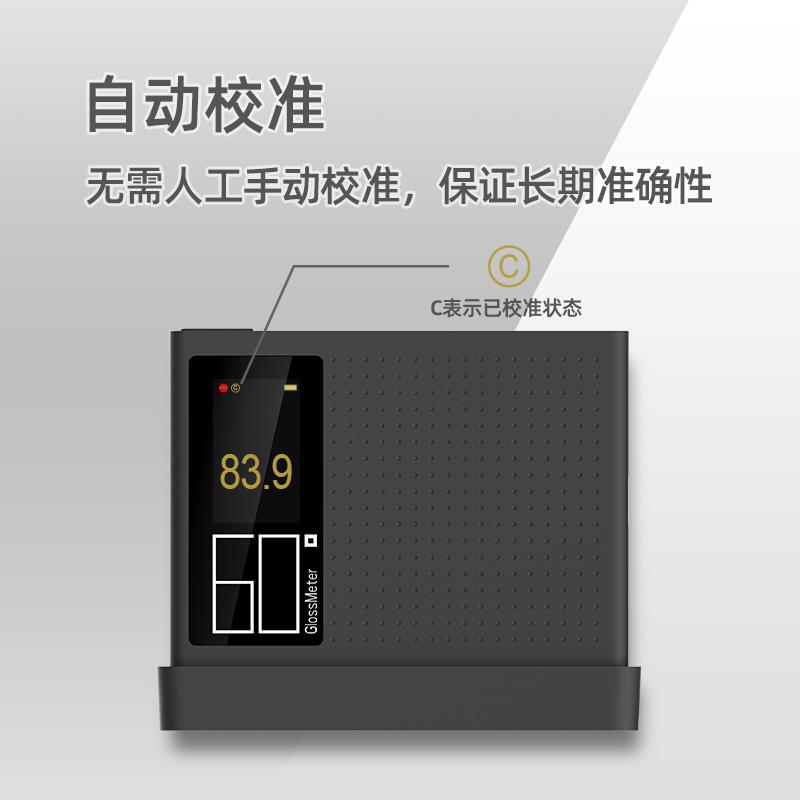

1. Automatic calibration function to ensure measurement accuracy
2.60 ° Standard Measurement Angles for a Wide Range of Materials
3. Measurement range 0~ 200GU, Graduation 1GU, stable accuracy
4. Measurement time is less than 1 second, fast and efficient
5. Single charge can be continuously measured 5000 times, strong battery life
6. Full-color display, clear and intuitive display
7. Portable design, weight only 80g, compact size
8. USB Interface for easy data transfer
Principle
The Glossmeter calculates the Glossiness value (GU) by emitting a ray of light to illuminate the sample surface at a 60 ° angle and measuring the intensity of the reflected ray of light. Optical inspection Sensor and electronic processing system are used inside the instrument to achieve fast and stable gloss measurement.
Applications
Coatings, plastics, metals, paper, ceramics, automobiles, furniture, printing
Standards
ISO 2813、ASTM D523、ASTM D2457
Steps
1. Turn it on and ensure that the instrument has sufficient power
2. Automatic calibration by placing the instrument on a standard board
3. Align the test diameter to the surface of the sample to be tested
4. Press the measurement button, the instrument automatically completes the measurement
5. Read the Glossiness value on the display
6. Export data via USB interface (if required)
7. Clean the instrument and turn it off after use
Notice
• Avoid use in high temperature, high humidity or condensation environments
• Ensure that the sample surface is clean and free of contamination before measurement
• Regularly use the matching cleaning cloth to wipe the standard board and instrument
• The calibrated standard board should be kept properly to avoid scratches or contamination
• Use the original USB data cable when charging to ensure safety
• When not in use for a long time, it is recommended to shut down and store it in a drying place
