Overview

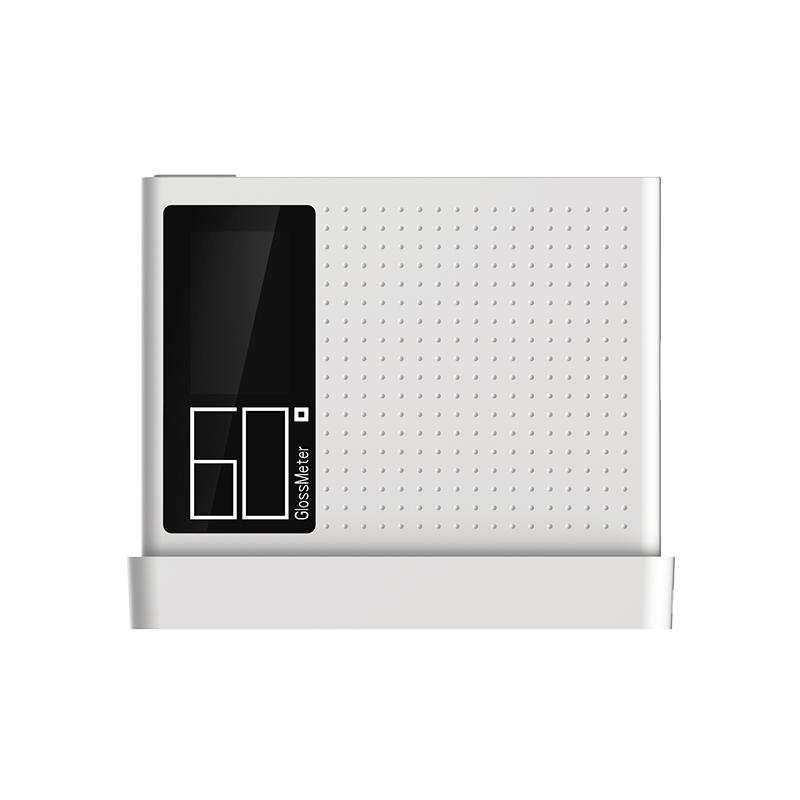

CHNSPEC DG60 MAX Glossiness Meter is a Portable precision measuring instrument that uses 60 ° standard Measurement Angles for fast and accurate measurement of surface Glossiness of objects. Measurement range 0~ 2000GU, suitable for surface Glossiness detection of various materials.
Features
1. Automatic calibration function to ensure measurement accuracy
2.60 ° Standard Measurement Angles, in line with international standards
3. High Accuracy measurement, Graduation 0.1GU | 1GU
4. Fast measurement, Measurement time is less than 1 second
5. Long battery life, single charge can be continuously measured 30000 times
6. Full-color display, clear and intuitive display
7. Multiple Interfaces, Support USB and Bluetooth Connection
8. Portable design, weight only 116g, small size
Principle
The instrument irradiates the surface of the object to be measured by emitting a beam of light at a specific angle, receives the reflected light intensity, calculates the Glossiness value according to the ratio of the reflected light intensity to the reflected light intensity of the standard plate, and realizes the accurate measurement of the Glossiness of the object surface.
Applications
Coatings, inks, plastics, metals, ceramics, paper, building materials, automobiles, furniture, electronics
Standards
ISO 2813、ASTM D523、ASTM D2457
Steps
1. Turn it on and make sure the battery is sufficient.
2. Aim the instrument measurement port at the surface of the measured object
3. Press the measurement button for measurement
4. Read the Glossiness value on the display
5. Transfer data via USB or Bluetooth
6. Clean the measurement port in time after use
Notice
• Avoid use in high temperature and high humidity environment
• Ensure that the measurement port is in close contact with the measured surface during measurement
• Regularly calibrate using standard plates
• Avoid severe vibration or impact on the instrument
• Keep the measurement port clean to avoid contamination affecting Measurement accuracy
• Use the original USB cable when charging.
• Please shut down and save when not in use for a long time
