Overview

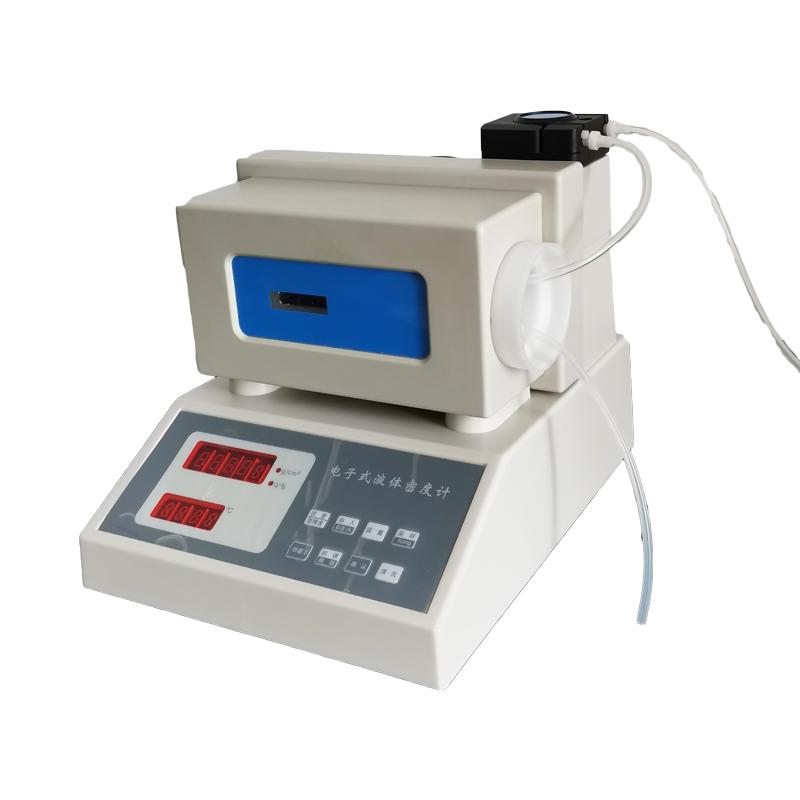

XIONGFA XF-MD06 electronic liquid Density Meter adopts the principle of U-shaped tube oscillation method, and conducts liquid density measurement through different oscillation Frequency when the double U-shaped tube is filled with different media. The instrument is composed of dual-tone fork density Sensor, vibrator circuit, temperature measurement circuit, CPU, display, Thermostatic bath, liquid inlet pump and control panel, which can process measurement data quickly and directly and has high Sensitivity.
Features
1. Using the principle of U-tube vibration method, it is suitable for automatic measurement of liquid density
2. Imported high-progress XFMD chip processing, high Sensitivity, accurate data
3, automatic sampling: XIONGFA dedicated automatic sampling system, automatic Basis Weight technology, high accuracy
4. Adopt self-developed residue removal technology to ensure that the sample is free of residue
5, thermostatic control: using self-developed Peltier refrigeration technology, high cooling efficiency, environmental protection
6. Wall-free treatment: avoid residual liquid by wall-free treatment on the inner wall of the oscillating tube to ensure instrument accuracy
7. Data storage and transmission: built-in memory chip, capable of storing 80 sets of test data, and can be callback and deleted
8. Adjustment: Use 20 ° C pure water as the standard to calibrate the instrument
Principle
Electronic Liquid Density Meter conducts liquid density measurement based on the principle of different oscillation Frequency when the double U-shaped tube is filled with different media. After the liquid to be tested is pumped into the resonator cylinder Sensor, the measurement data processing is carried out by the single chip microcomputer, which realizes fast, direct and high Sensitivity measurement.
Applications
Petroleum, Diesel, Cleaning Fluid, Lubricating Fluid, Chemical Liquid, Flux, Crude Oil, Chemical Reagent, Benzene, Toluene, Flavors and Fragrances, Essential Oils, Alcohol, Beverage
Standards
GB/T29617、ISO12185、ASTMD4052/D5002、GB/T29617-2013、GB/T2013-2010、GB23971-2009、GB4747-2009、SH/T0604-2000、SN/T2383-2009、SH/T0729-2004、ASTMD4052、ASTMD5002、ASTMD1250、ASTMD3505、ISO12185:1996
Steps
1. Insert the injection tube into the liquid
2. Press the "sampling" button, and the liquid will be automatically pumped into the vibrator.
3. Wait for the machine to be thermostatic to 20 +/- 0.1 ℃
4, the screen directly displays the temperature and density of the liquid
Notice
• Drain the liquid in the vibrator first during automatic cleaning
• Clean the vibrator with a suitable cleaning liquid until no residue can be seen in the vibrator
