Overview

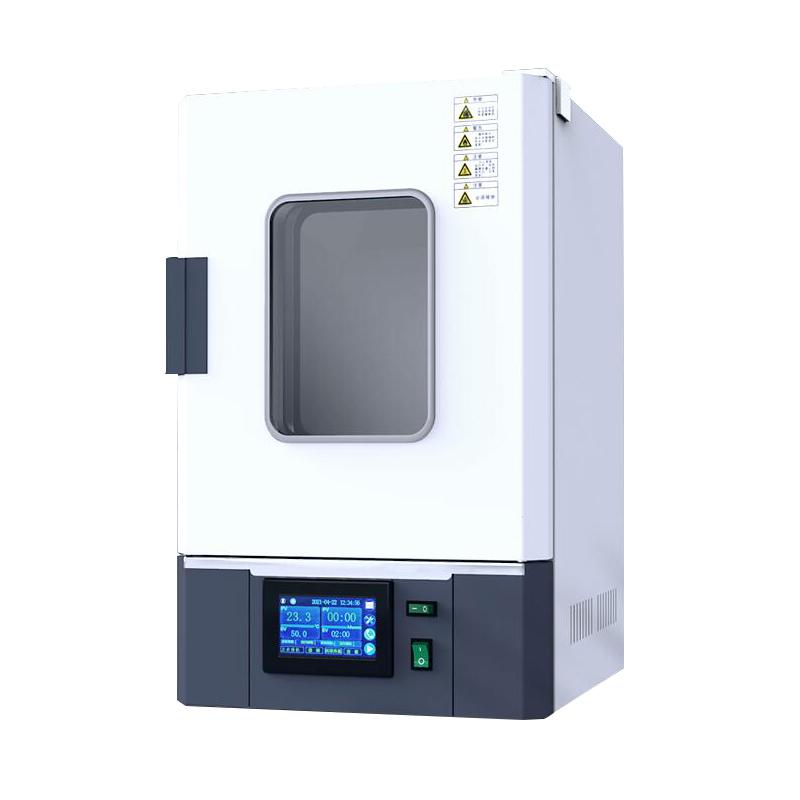

BGLQ-125BE forced convection drying oven adopts vertical design, which has the characteristics of accurate temperature control, stable performance and convenient operation. It is suitable for drying, baking, melting wax and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes and other units.
Features
1. Novel vertical design, the shell is made of good steel plate, surface electrostatic spray treatment, beautiful shape, anti-corrosion and durable
2. Four corners arc transition, Shelf spacing adjustable, duct side plate and bottom heating cover quick release structure, easy to clean
3. Turbine centrifugal fan base drum and bottom heating reasonable cooperation, vertical double air duct vertical hot air circulation design, so that the indoor temperature distribution more uniform
4. Switching fan can be opened or closed according to the experimental requirements to ensure Temperature uniformity while not blowing powder foam items
5. Optional 485 interface, which can be connected to a computer to remotely monitor temperature parameters
6. The new structure box door has good thermal insulation effect, double-decked tempered Glass large viewing window, lock type elastic adjustment door lock, high temperature silicone sealing strip to ensure good sealing
7.5-Inch Touchscreen, standard 50-segment program temperature control, heating rate, over-temperature alarm, timing, restart to restore temperature and time memory, display temperature rise Linear dispersion, can record 800 minutes of data, can schedule boot and shutdown
Principle
The natural circulation in the box is formed by the blower, the forced convection is formed, the unique bottom drum of the turbine centrifugal fan blade is reasonably matched with the bottom heating, and the vertical double air duct vertical hot air circulation design makes the temperature distribution in the working room more uniform.
Applications
Industrial and mining enterprises, scientific research institutes laboratory drying, baking, wax, heat treatment
Steps
1. Connect the power supply (220V/50HZ)
2. Adjust Shelf spacing as needed
3. Set temperature parameters through 5 inch Touchscreen (Temperature range RT + 10~ 300 ℃)
4. Select whether to turn on the fan
5. Set the timing function (1~ 9999min)
6. Scheduled boot and shutdown can be booked
7. Monitor the experimental process through the observation window
Notice
• Ambient Temperature should be in the range of RT + 5~ 40 ℃
• Load per shelf 15kg
• Make sure the door is well sealed before use
• Regularly clean the side plate and bottom heating cover of the air duct
Be careful to prevent heat loss
• Reasonably select the fan switch state according to the experimental requirements
