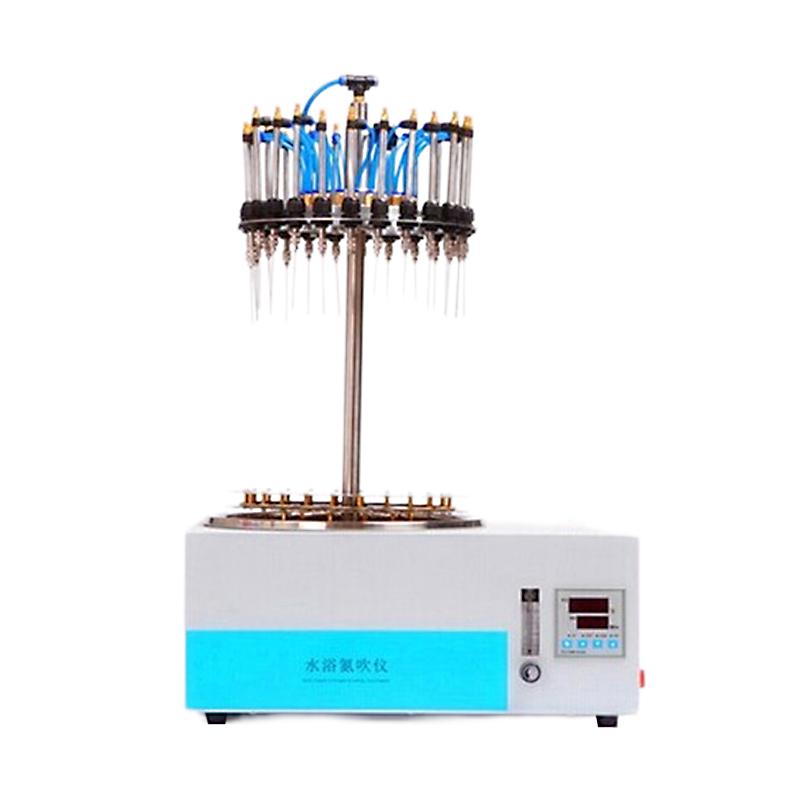

HUXI YST-24 Circular water Bath Nitrogen blowing instrument 24 position sample temperature control condensing

Name: HUXI YST-24 Circular water Bath Nitrogen blowing instrument 24 position sample temperature control condensing
Brand: HuXi
SKU: NB038439
Price: 1025.0 USD
Availability: InStock

$ 1025.00Ex works

Can process 24 samples at the same time, temperature control accuracy of +/- 1 ℃, Gas flow rate of each channel is adjusted separately, using 316 stainless steel material, suitable for 10-29mm testtube, to meet different condensing needs.

Model

Get Quote

Category : Nitrogen Evaporator

Brand : HuXi

SKU : NB038439

Service :The delivery and service By NBCLab.Com

Overview

HUXI YST-24 circular water bath Nitrogen blowing instrument is specially designed for condensing samples in chemical laboratories. It adopts purge needle capture technology, which can control the temperature of the sample and use nitrogen and other inert gases to blow quickly, controllably and continuously to the surface of the sample to achieve rapid anaerobic condensation of the sample volume. It has the characteristics of time saving, convenience and accuracy. It solves the problem of slow condensing speed and troublesome operation of Rotary evaporator. It is especially suitable for small quantities of multiple samples and samples that cannot be heated to condense.

Features

1. Each air needle channel on the distribution room can be used in combination or alone, each air needle can be switched on and off separately, and the height of the distribution room can be adjusted as needed 2. Gas flow rate of each channel can be adjusted separately to meet different needs and overcome the weakness of different Nitrogen blowing instrument Flow rate 3. The digital thermostat adopts PID technology, dual digital display, which can realize over-temperature alarm 4. The parts that may come into contact with the solvent are made of 316 stainless steel, which has a long service life and is easy to clean 5. The whole machine can be used in the fume cupboard 6. Gas flow rate meter and pressure regulating valve are optional 7. Standard tuberack aperture φ 15mm, special aperture and arrangement can be predetermined for special specifications

Principle

The Nitrogen blowing instrument uses purge needle trapping technology to control the temperature of the sample heating, using nitrogen and other inert gases to quickly, controllably and continuously blow to the sample surface, accelerate solvent evaporation through air flow, and realize rapid oxygen-free condensing of the sample volume.

Applications

Chemical laboratory, sample condensing

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Number of samples processed
24 pieces
Heating mode
Round water bath
Scope of use of testtube
10~29mm
Sample tray lifting height
0-150mm
Sample plate swirl/spin space
360℃
Temperature control accuracy
±1℃
Temperature Range
RT+-100℃
Temperature control method
4-Digit display/PID adjustment/over-temperature alarm
Timed time
0-99h59min
Nitrogen consumption
330Ml/min/sample
Power
1000W
weight
12kg
