Overview

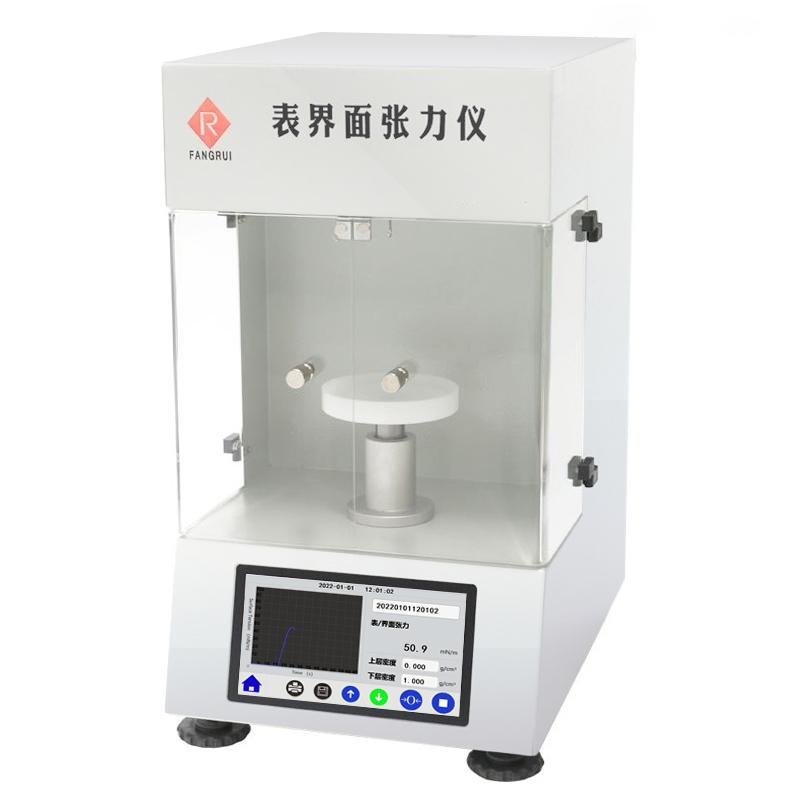

The BZY100 surface tensiometer is widely used in interfacial tension related quality control processes, such as emulsifying agent, wetting agent and detergent detection. The instrument is reliable in performance, easy to use, and does not rely on computers and Miscellaneous equipment to provide accurate and reliable analysis in large-scale sample testing needs. The BZY100 is controlled by an automatic motor for fast switching of accurate interfacial tension measurements.
Features
1. With a 4.3-inch Touchscreen, all operations and information are completed or displayed on the screen
2. Sensor using electromagnetic force equilibrating principle, High Sensitivity, High Accuracy, High repeability
3. Both platinum plate method and platinum ring method are used
4. Fully automatic measurement, no need to calculate, directly display surface tension value or interfacial tension value
5. One-click clearing, one-click correction; digital processing technology, no deviation
6. Users can calibrate data with standard samples (distillation water and pure ethanol) to ensure measurement accuracy
7. Real-time display measurement Linear dispersion, save measurement results, print main parameters, data and Linear dispersion
8. Double Door Transparent Organic Glass Draft Shield, Easy Operation, Reduce Operating Environment Requirements
9. Password management function to ensure data Traceability and prevent data modification and erroneous deletion
10. Chinese/English swap operation
Principle
BZY100 surface tensiometer adopts the sensor of electromagnetic force equilibrating principle, and realizes fast switching of accurate interfacial tension measurement through automatic motor control. The instrument supports platinum plate method and platinum ring method, and the automatic measurement process does not need to be calculated, and directly displays the tension surface value or interfacial tension value.
Applications
Ink, inks analysis printing/Spreader tendency, wettability, quality control, cleaning agent analysis surfactant absorption rate, properties, study the appropriate concentration, auxiliary liquid research aggregation and diffusion behavior, cosmetic analysis emulsion or suspension agent dispersion, Stability and wettability, Eletroplating analysis wettability, quality control, pesticides, traditional Chinese medicine analysis adsorption, dispersion, stability, paints, Coating analysis dispersion, stability, wetting, etc., transformer oil and other petroleum products oil-water interfacial tension value size and new oil purity and operating oil deterioration status, water treatment sewage treatment, water quality analysis
Standards
ASTM D971、ASTM D1331、ASTM D1417、DIN EN 14210、DIN EN 14370、ISO 304、ISO 1409、ISO 4311、OECD 115、ISO 6889、GB/T 22237-2008、JB/T 9388-2002、JB/T 18396-2001、SH/T 1156-95、GB/T 6541-86、ISO 1409-1995、ISO 6295-1983、GB/T 5549(ISO304-1985)、GB 15308-2006、GBT 11276-2007、GB-T 22237-2008
Steps
1. Data calibrated using standard samples (distillation water and pure ethanol)
2. One-click reset
3. One-click correction
4. Fully automatic measurement, no need to calculate, directly display surface tension value or interfacial tension value
5. Real-time display measurement Linear dispersion
6. Save measurement results
7. Print main parameters, data and Linear dispersion
