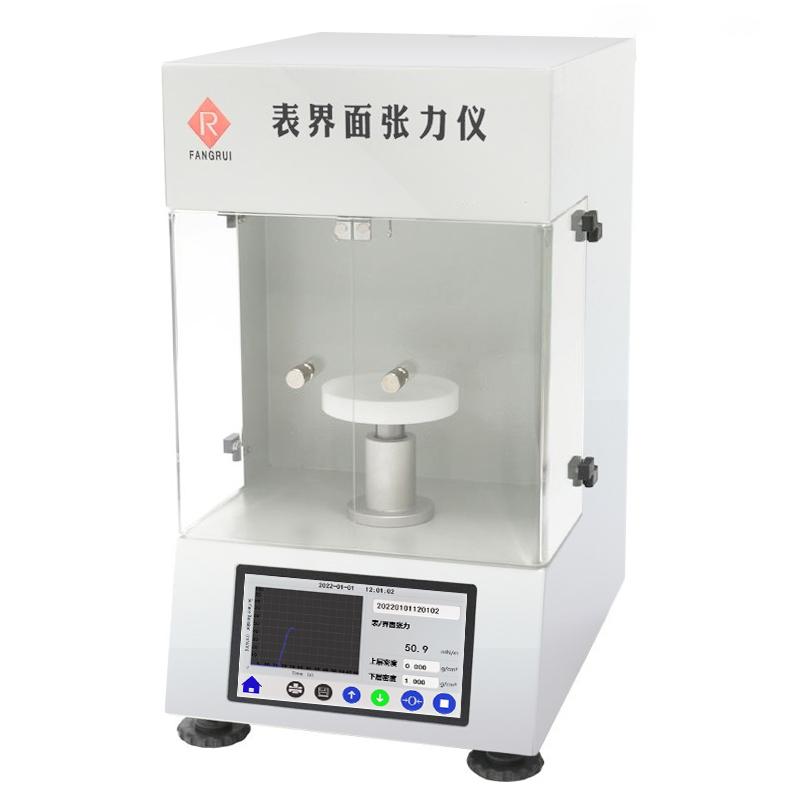

Overview
The BZY200 surface tensiometer is an upgrade of the BZY series, with a significant improvement in performance. The instrument is widely used in interfacial tension related quality control processes, such as emulsifying agent, wetting agent and detergent detection. It has the characteristics of reliable performance, easy to use, and does not rely on computers. It can provide accurate and reliable analysis under the needs of large-scale sample testing. The instrument uses automatic motor control to achieve fast switching of accurate interfacial tension measurement.
Features
1. With a 4.3-inch Touchscreen, all operations and information are completed or displayed on the screen
2. Sensor using electromagnetic force equilibrating principle, High Sensitivity, High Accuracy, High repeability
3. Both platinum plate method and platinum ring method are used
4. Fully automatic measurement, no need to calculate, directly display surface tension value or interfacial tension value
5. One-click clearing, one-click correction; digital processing technology, no deviation
6. Users can calibrate data with standard samples (distillation water and pure ethanol) to ensure measurement accuracy
7. Real-time display measurement Linear dispersion, save measurement results, print main parameters, data and Linear dispersion
8. Double Door Transparent Organic Glass Draft Shield, Easy Operation, Reduce Operating Environment Requirements
9. Password management function to ensure data Traceability and prevent data modification and erroneous deletion
10. Chinese/English swap operation
Principle
High Accuracy measurement is achieved by using the Sensor of electromagnetic force equilibrating principle, and fast switching of accurate interfacial tension measurement is achieved through automatic motor control. Users can use the platinum plate method or platinum ring method for fully automatic measurement, and can directly display the tension surface value or interfacial tension value without calculation.
Applications
Ink, inks analysis printing/Spreader tendency, wettability, quality control, cleaning agent analysis surfactant absorption rate, properties, study the appropriate concentration, auxiliary liquid research aggregation and diffusion behavior, cosmetic analysis emulsion or suspension agent dispersion, Stability and wettability, Eletroplating analysis wettability, quality control, pesticides, traditional Chinese medicine analysis adsorption, dispersion, stability, paints, Coating analysis dispersion, stability, wetting, etc., transformer oil and other petroleum products The size of the oil-water interfacial tension value is closely related to the purity of the new oil and the deterioration of the running oil, water treatment sewage treatment, water quality analysis
Standards
ASTM D971、ASTM D1331、ASTM D1417、DIN EN 14210、DIN EN 14370、ISO 304、ISO 1409、ISO 4311、OECD 115、ISO 6889、GB/T 22237-2008、JB/T 9388-2002、JB/T 18396-2001、SH/T 1156-95、GB/T 6541-86、ISO 1409-1995、ISO 6295-1983、GB/T 5549(ISO304-1985)、GB 15308-2006、GBT 11276-2007、GB-T 22237-2008
Steps
1. Use standard samples (distillation water and pure ethanol) for calibrating
2. Select Measuring method (platinum plate method or platinum ring method) through Touchscreen
3. One-click clearing and one-click correction operations
4. Start fully automatic measurement, the instrument completes the test in 60 seconds
5. View measurement Linear dispersion and results in real time
6. Save measurement results and print data and Linear dispersion through RS232 interface
Notice
Standard samples should be calibrated before use to ensure measurement accuracy
• Power supply voltage selection (110V or 220V)
• Operate with Draft Shield to reduce Environmental requirements
Secure Passwords to Ensure Data Traceability and Prevent Misuse
• Measurement range should be between 0~ 500mN/m
Regular Maintenance of Sensors for High Accuracy measurements
