Overview

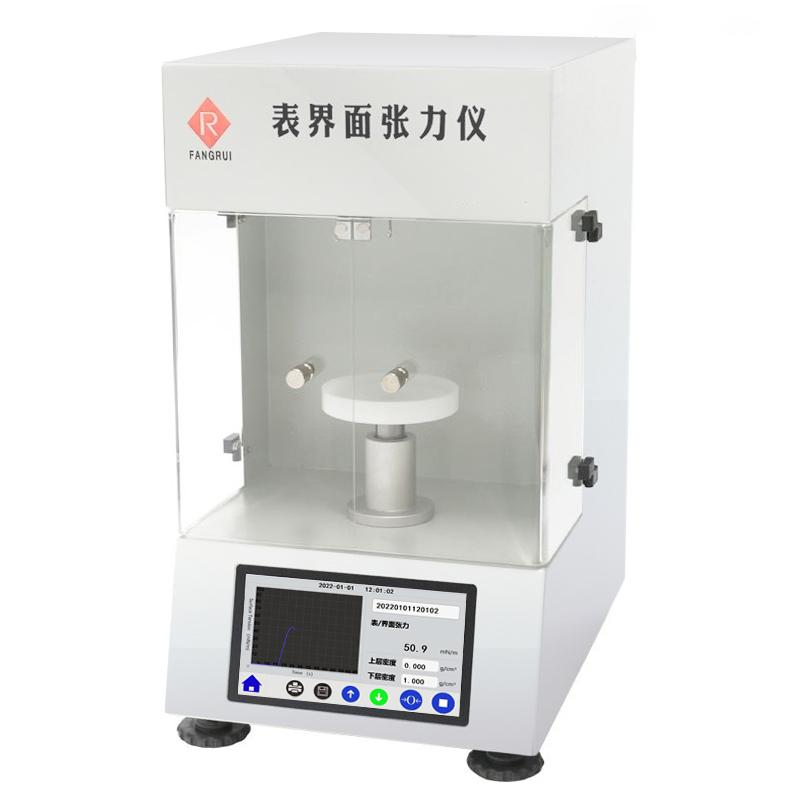

The BZY100 & BZY200 surface tensiometers are widely used in interfacial tension related quality control processes, such as emulsifying agent or wetting agent and cleaning agent detection. The instrument is reliable in performance, easy to use, and does not rely on computers and Miscellaneous equipment to provide accurate and reliable analysis in the case of large sample testing needs. The BZY100 & BZY200 enables fast switching of accurate interfacial tension measurements with automatic motor control.
Features
1. With a 4.3-inch Touchscreen, all operations and information are completed or displayed on the screen
2. Sensor using electromagnetic force equilibrating principle, High Sensitivity, High Accuracy, High repeability
3. Both platinum plate method and platinum ring method are used
4. Fully automatic measurement, no need to calculate, directly display surface tension value or interfacial tension value
5. One-click clearing, one-click correction; digital processing technology, no deviation
6. Users can calibrate data with standard samples (distillation water and pure ethanol) to ensure measurement accuracy
7. Real-time display measurement Linear dispersion, save measurement results, print main parameters, data and Linear dispersion
8. Double Door Transparent Organic Glass Draft Shield, Easy Operation, Reduce Operating Environment Requirements
9. Password management function to ensure data Traceability and prevent data modification and erroneous deletion
10. Chinese/English swap operation
Principle
The BZY100 & BZY200 surface tensiometer adopts the Sensor of electromagnetic force equilibrating principle to achieve accurate measurement, and realizes fast switching of interfacial tension measurement through automatic motor control.
Applications
Ink, inks analysis printing/Spreader tendency, wettability, cleaning agent analysis surfactant absorption rate, properties, auxiliary liquid research aggregation and diffusion behavior, cosmetic analysis emulsion or suspension agent dispersion, Stability and wetness, Eletroplating analysis wettability, pesticides, traditional Chinese medicine analysis adsorption, dispersion, stability, paints, Coating analysis dispersion, stability, wetting, etc., transformer oil and other petroleum products oil oil water interfacial tension value analysis, water treatment sewage treatment, water quality analysis
Standards
ASTM D971、ASTM D1331、ASTM D1417、DIN EN 14210、DIN EN 14370、ISO 304、ISO 1409、ISO 4311、OECD 115、ISO 6889、GB/T 22237-2008、JB/T 9388-2002、JB/T 18396-2001、SH/T 1156-95、GB/T 6541-86、ISO 1409-1995、ISO 6295-1983、GB/T 5549(ISO304-1985)、GB 15308-2006、GBT 11276-2007、GB-T 22237-2008
Steps
1. One-click reset
2. One-click correction
3. Data calibrated using standard samples (distillation water and pure ethanol)
4. Fully automatic measurement, direct display of surface tension value or interfacial tension value
5. Real-time display measurement Linear dispersion
6. Save measurement results
7. Print main parameters, data and Linear dispersion
