Overview

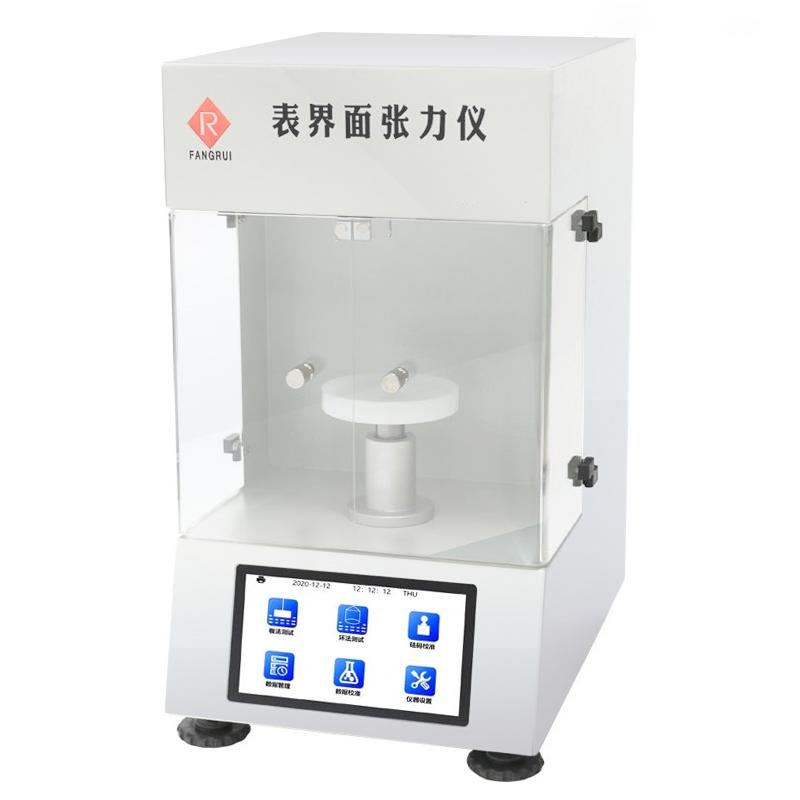

The BZY200 ring method surface tensiometer is an upgrade of the BZY series, and the performance has been greatly improved. The instrument is widely used in the quality control process related to the interfacial tension, such as emulsifying agent, wetting agent and detergent detection. It has the characteristics of reliable performance, easy to use, and does not rely on computers. It can provide accurate and reliable analysis under the needs of large-scale sample testing. The instrument realizes fast switching of accurate interfacial tension measurement through automatic motor control.
Features
1. With a 4.3-inch Touchscreen, all operations and information are completed or displayed on the screen
2. Sensor using electromagnetic force equilibrating principle, High Sensitivity, High Accuracy, High repeability
3. Both platinum plate method and platinum ring method are used
4. Fully automatic measurement, no need to calculate, directly display surface tension value or interfacial tension value
5. One-click clearing, one-click correction; digital processing technology, no deviation
6. Users can calibrate data with standard samples (distillation water and pure ethanol) to ensure measurement accuracy
7. Real-time display measurement Linear dispersion, save measurement results, print main parameters, data and Linear dispersion
8. Double Door Transparent Organic Glass Draft Shield, Easy Operation, Reduce Operating Environment Requirements
9. Password management function to ensure data Traceability and prevent data modification and erroneous deletion
10. Chinese/English swap operation
Principle
High Accuracy measurement is achieved with a Sensor based on the principle of electromagnetic force equilibrating, and rapid switching of accurate interfacial tension measurement is achieved through automatic motor control. Users can calibrate with standard samples (distillation water and pure ethanol) to ensure measurement accuracy.
Applications
Ink, inks analysis printing/Spreader tendency, wettability, quality control, cleaning agent analysis surfactant absorption rate, properties, study the appropriate concentration, auxiliary liquid research aggregation and diffusion behavior, cosmetic analysis emulsion or suspension agent dispersion, Stability and wettability, Eletroplating analysis wettability, quality control, pesticides, traditional Chinese medicine analysis adsorption, dispersion, stability, paints, Coating analysis dispersion, stability, wetting, etc., transformer oil and other petroleum products The size of the oil-water interfacial tension value is closely related to the purity of the new oil and the deterioration of the running oil, water treatment sewage treatment, water quality analysis
Standards
ASTM D971、ASTM D1331、ASTM D1417、DIN EN 14210、DIN EN 14370、ISO 304、ISO 1409、ISO 4311、OECD 115、ISO 6889、GB/T 22237-2008、JB/T 9388-2002、JB/T 18396-2001、SH/T 1156-95、GB/T 6541-86、ISO 1409-1995、ISO 6295-1983、GB/T 5549(ISO304-1985)、GB 15308-2006、GBT 11276-2007、GB-T 22237-2008
Steps
1. Use standard samples (distillation water and pure ethanol) to calibrate the instrument
2. Parameter setting via 4.3-inch Touchscreen
3. Place samples and make measurements
4. The instrument automatically displays the measurement results
5. Save measurement results and print main parameters, data and Linear dispersion
Notice
Standard samples should be calibrated before use to ensure measurement accuracy
Environmental requirements and reduced environment impact with Draft Shield
• Pay attention to data security management and use password management to prevent data deletion by mistake
• Measuring method according to measurement needs (platinum ring method or platinum plate method)
• Power supply voltage matching (110V or 220V)
