Overview

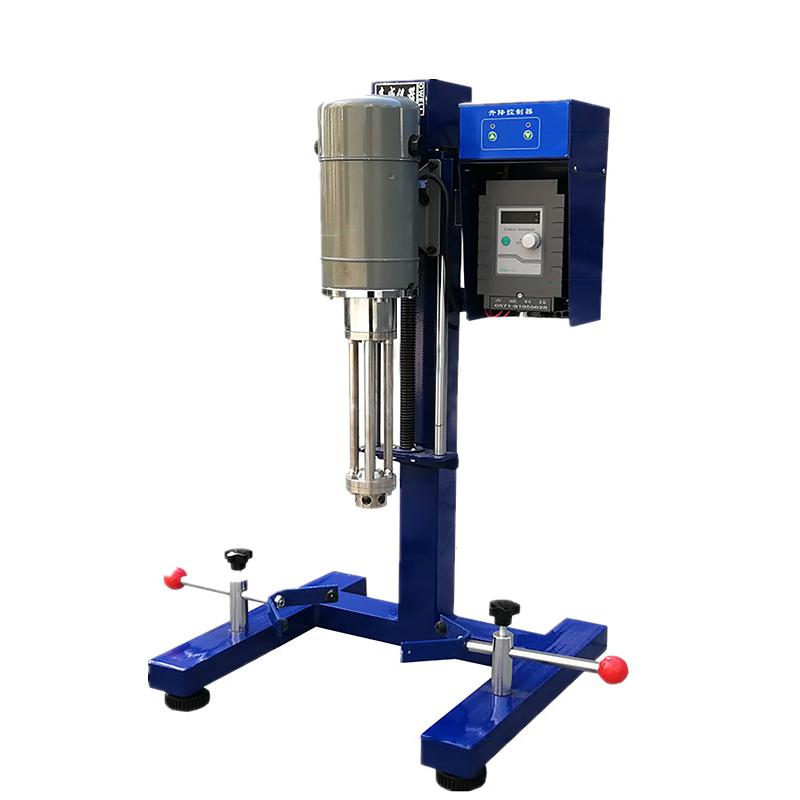

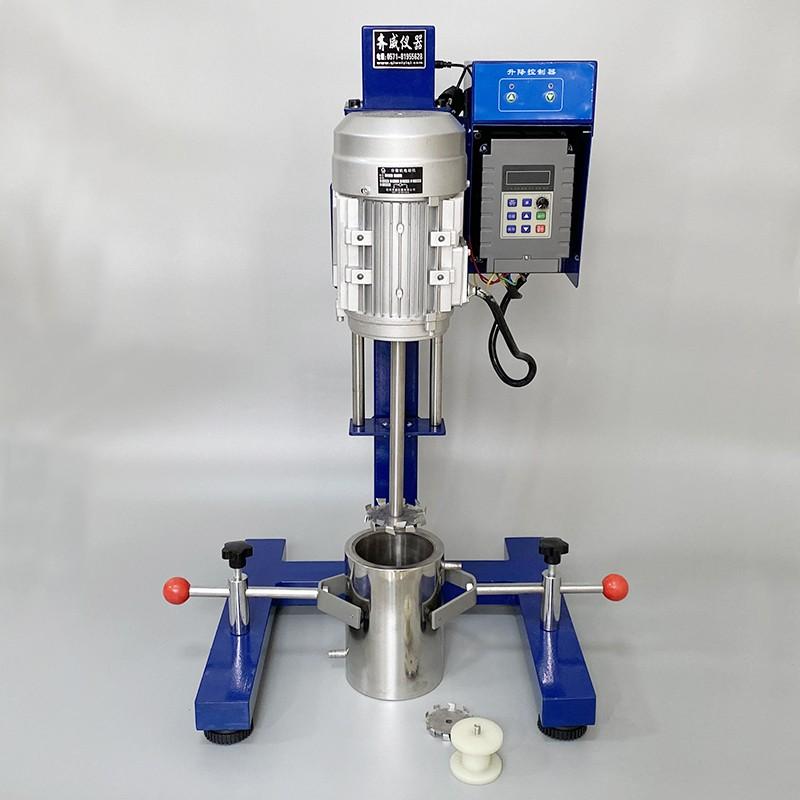

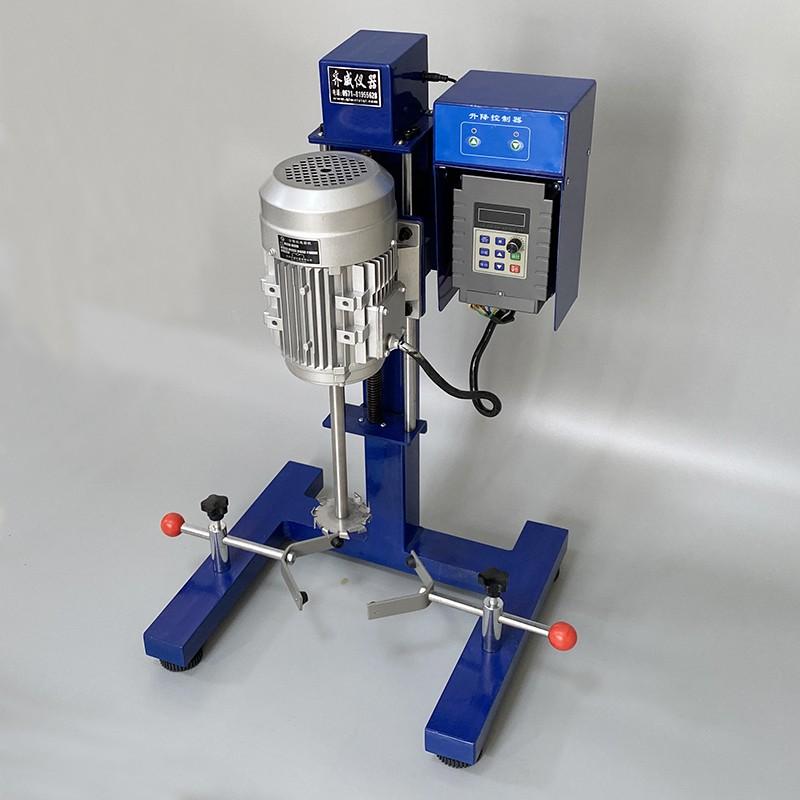

QIWEI JRH-400 Mulser adopts a specially designed rotor and stator under the high-speed drive of the motor, through high-frequency mechanical effects, the material can withstand strong shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap, and achieve instant uniform and fine emulsification, crushing and dissolving effects.
Features
1. Adopt manual lifting mode, easy to operate
2. Wide speed range (100-8000rpm), suitable for different material requirements
3. Special rotor and stator design for efficient emulsification
4. With timing function, it can automatically stop working
5. Compact structure, small footprint
Principle
Mulser drives the rotor and stator at high speed through the motor, so that the material is subjected to mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap, and bears hundreds of thousands of shears in a short time.
Applications
Gluing agents, paints Coatings, cosmetics, food, medicine, printing and dyeing, inks, asphalt
Steps
1. Adjust the motor locking bolt, adjust the high and low position of the rotating shaft and the container, put in the material and cover the container cover
2. Plug in the power supply, the meter shows "0000"
3. Before running, make sure that the potentiometer rotates counterclockwise to the end, press the "Run" button to start working, and the potentiometer is adjusted to the corresponding Rotation speed from left to right as needed
4. Press the "Stop" button, the motor stops running, cut off the power and shut down.
5. Timing operation: Press the "Time" key after the power-on display "0000", turn on the red light in the upper right corner, adjust the setting time of the positioning knob, and then press the "Time" key to set the Rotation speed through the locator knob, and automatically stop when the set time ends
Notice
• Idle is strictly prohibited
• Make sure the potentiometer rotates counterclockwise to the bottom before running
• Cut off the power supply in time after stopping work
• Set the time and Rotation speed in the correct order when timing operation
• When lifting, you need to loosen the safety buckle first, adjust the height and then tighten it.
