Overview

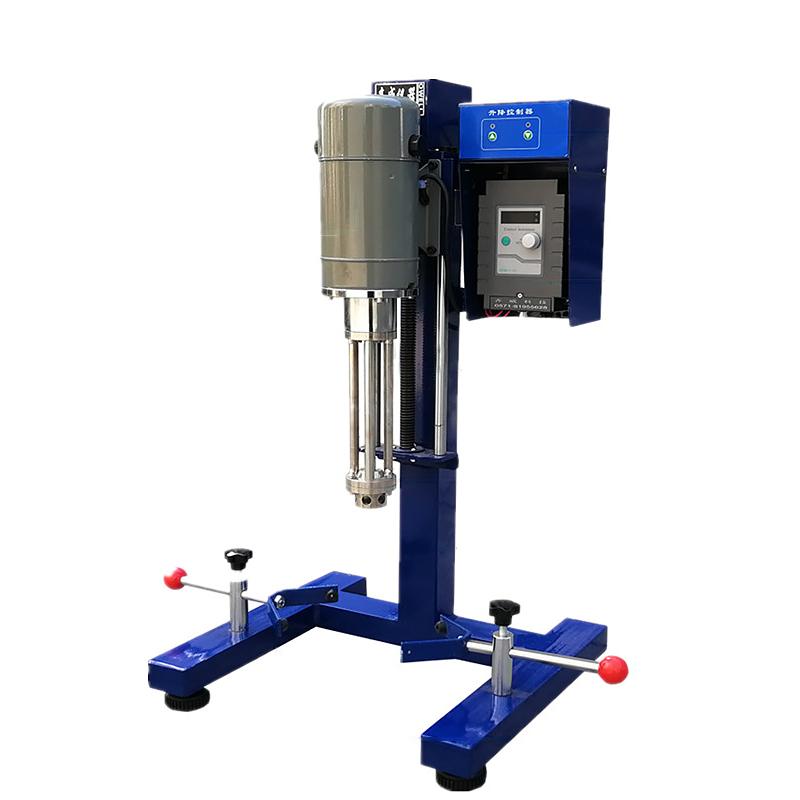

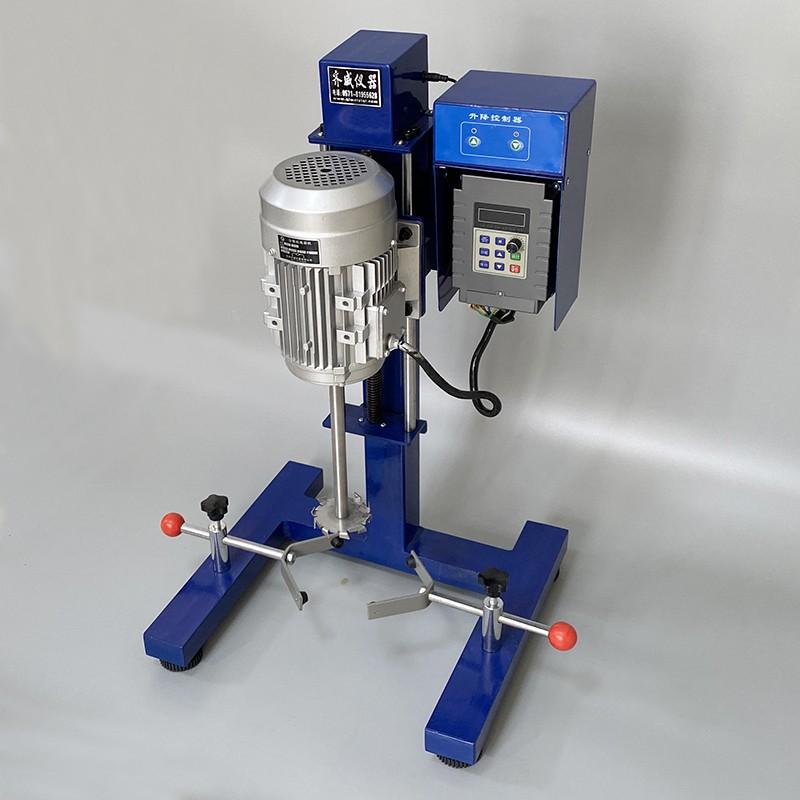

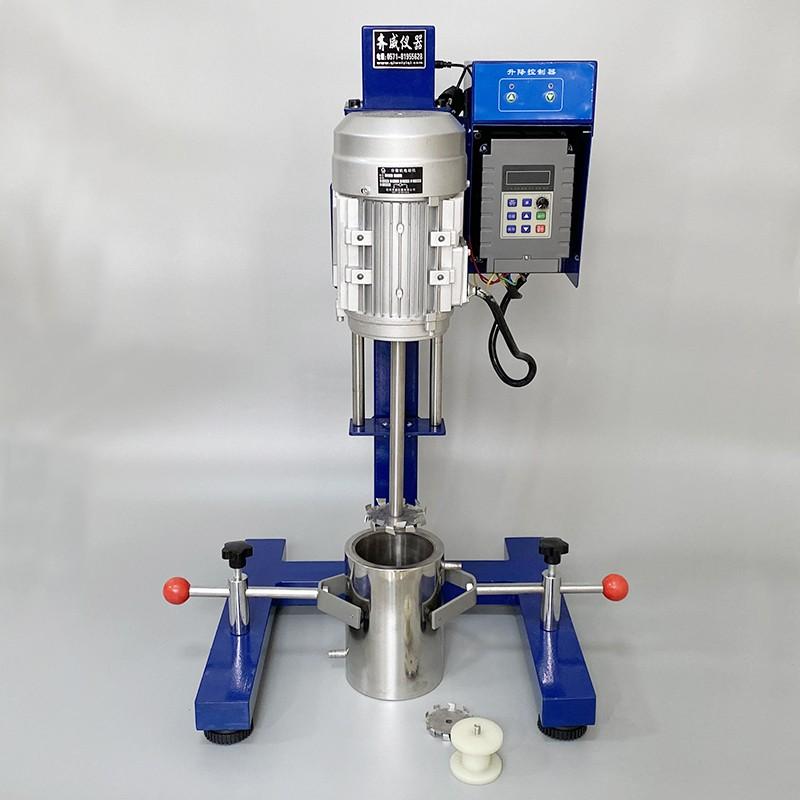

QIWEI JRH-1000 Mulser adopts a specially designed rotor and stator under the high-speed drive of the motor. The strong kinetic energy generated by high-frequency mechanical effects makes the material subject to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap. It can withstand hundreds of thousands of shears in a short time to achieve instant uniform fine emulsification, crushing and dissolving of insoluble materials. The equipment is widely used in gluing agent, paints Coating, cosmetics, food, medicine, printing and dyeing, inks, asphalt and other industries.
Features
1. Adopt manual lifting mode, easy and flexible operation
2. Wide speed range, adjustable from 100 to 8000rpm
3. Power 1100W, high processing efficiency
4. Equipped with timing function, it can automatically stop working
5. Compact structure, Dimension 460 * 420 * 750mm
Principle
Mulser drives the specially designed rotor and stator at high speed through the motor to suck the material into the rotor area. Under the high-frequency mechanical effect generated by high-speed swirl/spin, the material is subjected to strong mechanical shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap of the stator and rotor, and bears hundreds of thousands of shears in a short time, so as to achieve fine emulsification, crushing and dissolving of immiscible materials.
Applications
Gluing agents, paints Coatings, cosmetics, food, medicine, printing and dyeing, inks, asphalt
Steps
1. Adjust the motor locking bolt, adjust the high and low position of the rotating shaft and the container, put in the material and cover the container cover
2. Plug in the power supply, the meter shows "0000".
3. Before running, make sure that the potentiometer rotates counterclockwise to the bottom, press the "Run" button to start working, and the potentiometer is adjusted to the corresponding Rotation speed from left to right as needed
4. Press the "Stop" button, the motor stops running, cut off the power and shut down.
5. Timing operation: Press the "Time" button after the power-on display "0000", turn on the red light in the upper right corner, adjust the positioning knob to set the time, and then press the "Time" button to set the Rotation speed through the locator knob, and automatically stop when the set time ends
Notice
• Idle is strictly prohibited
• Make sure the potentiometer rotates counterclockwise to the bottom before running
• Cut off the power supply in time after stopping work
• When lifting, you need to loosen the safety buckle first, adjust the height and then tighten it.
