Overview

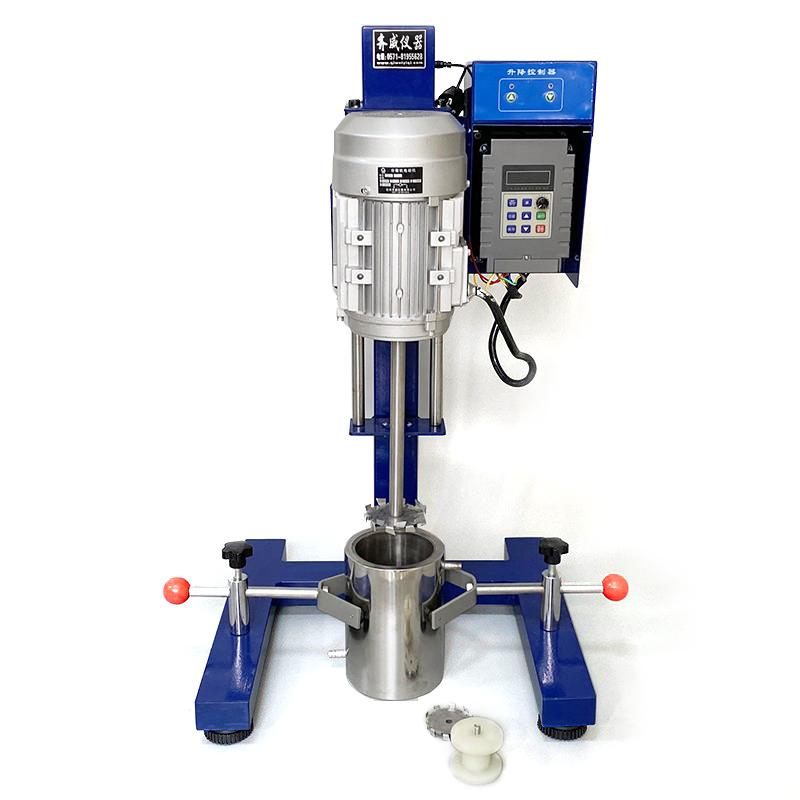

JFS-550B frequency conversion Disperser is a QIWEI brand of mixing, sand grinding, dispersion and other multi-functional experimental equipment in one. The equipment adopts Minbu motor, which has the advantages of small size, low noise, brushless mechanical abrasion, environmental protection, etc. Rotation speed is directly displayed through the frequency conversion controller.
Features
1. Set mixing, sand grinding, dispersion multi-function in one
2. Using Minbu motor, small size, low noise, no carbon brush mechanical abrasion, environmental protection
3. Rotation speed displayed directly by variable frequency controller
4. Double axis constant force lifting system, easy to lift
5. The dispersion disc and sand disc are directly connected to the shaft with screws
6. The left and right grippers fix the barrel, and the cylinder body adopts a jacket structure
7. Automatic lifting method
Principle
Rotation speed of the motor is adjusted by the frequency conversion controller to realize the functions of stirring, sand grinding and dispersion. The rotating shaft drives the dispersion disc or sand grinding disc to swirl/spin to process the material, and at the same time adjusts the working position through the dual-axis constant force lifting system.
Applications
experimental equipment
Steps
1. Plug in the power supply, the meter shows "0000".
2. Turn the potentiometer knob to the left and press the "Run" button to start the work.
3. The "Delta" on the control box is the rise button, and the "▽" is the drop button. Press and hold the button during the rise and fall process and do not release it.
4. Press the "Stop" button to stop the motor from running.
5. Cut off the power and shut down
Notice
• Press and hold the button during the lifting process and do not release it.
• Make sure the cartridge is fixed in the holder before operation
• Cut off the power supply in time after use
