Overview

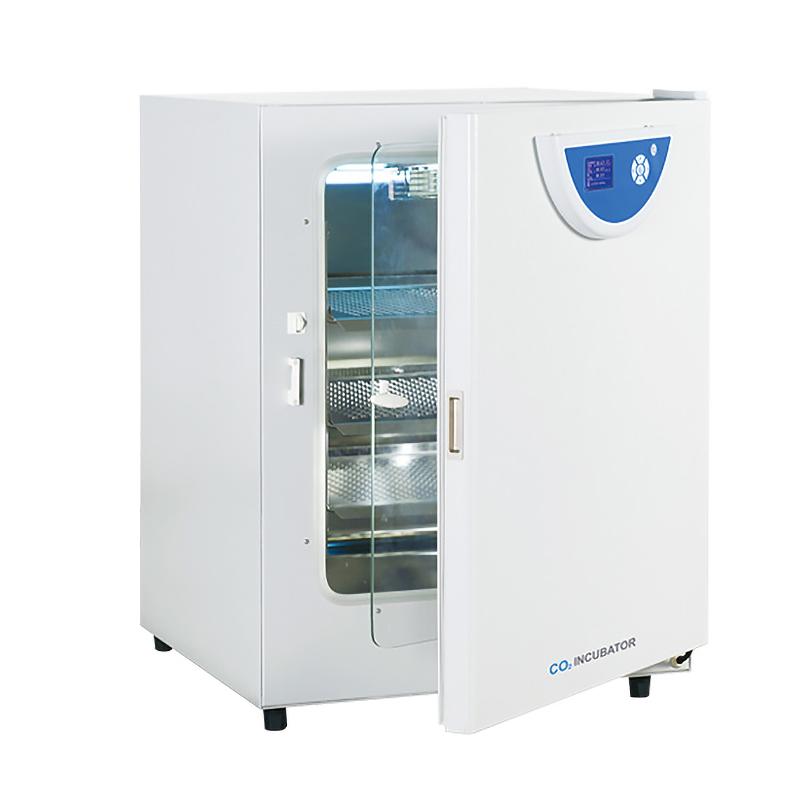

YIHENG BPN-190CRH Co2 incubator is a new generation product, combining more than ten years of design and manufacturing experience, oriented to customer needs, using imported infrared CO2 Sensor, accurate and stable control accuracy, not affected by temperature and Humidity.
Features
1. Faster CO2 concentration recovery speed, after opening the door for 30 seconds, the CO2 concentration returns to 5% in less than 5 minutes, and the temperature returns to 37 ° C in less than 10 minutes.
2. Imported Infrared Sensor, fast monitoring speed, not affected by external temperature Humidity fluctuations.
3. The CO2 inlet is equipped with a microbial Filter, which has a filtration efficiency of up to 99.99% and effectively filtrates bacteria and dust particles.
4. Glass door heating system to prevent condensation and reduce microbial contamination.
5. The speed of the circulating fan is automatically controlled to avoid the evaporation of the sample due to excessive air volume.
6. HEPA effective Filter, can filtrate external bacteria and dust, the door closed 5 minutes after the return to 100 clean level, easy to disassemble.
7. Humanized design, can be stacked, large-screen LCD display temperature, CO2 concentration, relative humidity, menu Operating interface is simple and easy to understand.
8. Safety functions, including independent temperature limit alarm system, sound and light alarm, temperature, CO2 concentration, door opening time is too long alarm and ultraviolet sterilization reminder.
9. Microcomputer controller, PID control, displaying a variety of parameters.
10.90 ℃ high temperature heating and humidity sterilizing system, effectively eliminate bacteria, mold, mycoplasma and other microbial pollution.
11. Data recording and fault diagnosis display (optional), data can be downloaded through the RS485 port.
Principle
Imported Infrared CO2 Sensor is used to monitor carbon dioxide concentration, with high control accuracy and stability, and is not affected by temperature and Humidity. The circulating fan speed is automatically adjusted to reduce the wind speed in the thermostatic state and avoid sample volatilization. HEPA and Microbial Filter effectively penetrate bacteria and dust and maintain a sterile environment in the box. Door heating system prevents condensation from being generated and reduces the risk of contamination.
Applications
Cell fostering, microbial experiments, biomedical research
Steps
Connect the power supply and ensure that the voltage is AC 220V 50Hz.
2. Open the box door and place the sample on the shelf.
3. Set the temperature and CO2 concentration parameters and adjust them through the Menu Operating interface.
4. Close the box door, the system automatically starts to work, and the CO2 concentration and temperature will recover quickly.
5. Monitor the temperature, CO2 concentration and relative humidity data on the display.
6. After use, optional 90 ℃ high temperature heating and humidity sterilizing system for inner chamber sterilization.
7. Optional function: Download data through RS485 port or use wireless alarm system.
Notice
• Ensure that the Working Ambient Temperature is within the range of + 5~ 30 ° C.
• Avoid opening and closing doors frequently to maintain CO2 concentration and temperature stability.
• Regularly check HEPA and Microbial Filter and replace if necessary.
• Make sure the CO2 Intake Filter is installed correctly before use.
• Pay attention to alarm prompts, such as abnormal temperature, CO2 concentration or long door opening time.
• Make sure the inner chamber is drying when sterilizing to avoid high temperature damage.
• Do not exceed two layers when stacked to prevent equipment instability.
• Optional features require additional installation and configuration.
